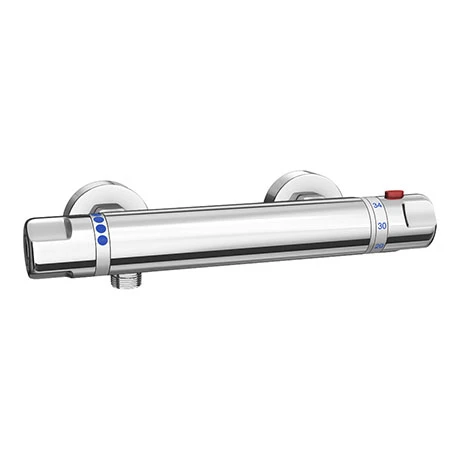

Apollo Low Pressure Thermostatic Bar Mixer Valve

Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Designed to be used with a slider rail kit (not included).

Product Details

• Width: 282mm
• Height: 40mm
• Type: Round Shower Bar Valve
• Style: Modern
• Fitting: Exposed
• Handle Type: Knob
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• 1 Bottom Offset Outlet
• Wall Mounted
• Thermostatic

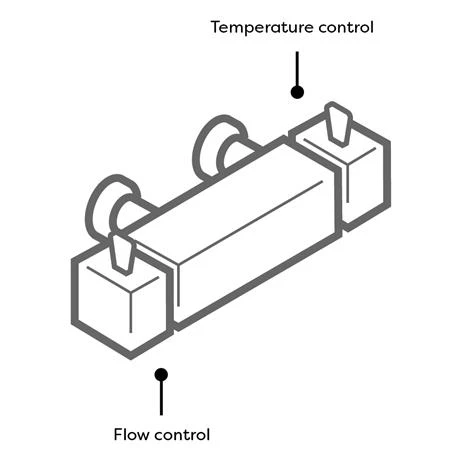

• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Suitable for very low pressure water systems, requiring an operating pressure between 0.5 bar and 1 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
