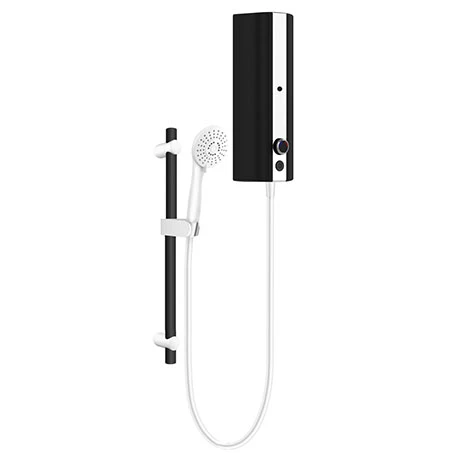

AQUAS Fit Ergo Manual 9.5KW Black + White Electric Shower

AQUA Fit Ergo is our more affordable design line. It brings fresh design into your bathroom. Reduced to the max it comes with two power settings for summer and winter. The solid slidebar and multi-function shower head offer a great showering experience.

Latest model now features two power settings for warm and cold seasons:

• 9.5kw setting for cooler season
• ECO 5kw setting for warmer season
• Power setting remains in position even after restart of shower for comfort
• Before activating 9.5kw setting we recommend turning Volume control to full cold

Product Details

• Range: AQUA FIT SERIES
• Type: Aquas Fit with Ergo
• Colour: Black / White
• Safety & Comfort Setting:
• Eco Button
• 2-Step thermal protection
• Auto temperature protection system
• Safety Device AQUAMAX
• High pressure protection
• Temperature and flow stabilizer
• Design Advantages:
• Fiber reinforced Tank – less limescale, extended timelive, energy efficient, burst resistant
• Start/Stop button
• Easy Grip – temperature control
• Shower Fittings:
• Rail length 600mm with front load slider
• Distance between rail brackets adjustable
• Handshower 100mm diameter, 3 spray pattern: rain, massage, mix air technology
• Smooth white hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Rub clean nozzles
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• Cable entry points right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Approvals: BEAB, CE; ROHS
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded


Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Additional images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
