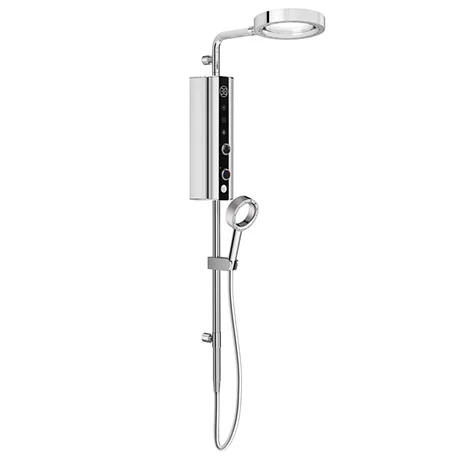

AQUAS Indulge Touch Inline X-Jet 9.5KW Chrome Electric Shower – A000393

State-of-the-Art showering with The INDULGE Touch Flex showers. Easy to operate beautifully design digital shower with two integrated shower outlets.

Touch technology: All controls are molded in the glossy control strip. Easy Touch activation, Waterproof, long term reliability, illuminated controls
Digitally controlled functions: Many sensors such as temperature sensors, pressure sensors, electricity sensors constantly survey and control the function of your shower. The result: more comfort, easy control and more safety

Comfort:
3 power settings:
Cold,
Summer 5KW,
Winter Setting 9.5kw
On/ Off button
Temperature handle for quick setting

Two-way Diverter choose your way of showering. Features a two-way ceramic diverter to switch between Overhead and Handshower

Easy to read outlet temperature display
Display will also display LP ( Low Pressure ) ….. inlet pressure inadequate
Display will also display OT ( Over temperature ) overheating with phased shut down to cool down the elements

Safety:
Thermal protection: Overheating indication if temperature exceeds around 49°C (+/- 2 degrees )   automatic reduction of power mode
Low pressure sensor – automatic reduction of power setting to prevent overheating .
If flow drops immediately – shower will reduce power mode to lower level
Outlet temperature sensor reports back to CPU temperature and would reduce power mode
Cold start technology – when closing the shower, the temperature display will countdown 6 seconds to final closure of the water. Cold water keeps running during this period to cool down heating coil and prevent scalding in case of an immediate restart
ELECTRICITY LEAKAGE – SAFETY FEATURE
If the event of any electrical leakage above 15 M/ Amps , the heater will automatically close down for maximum safety

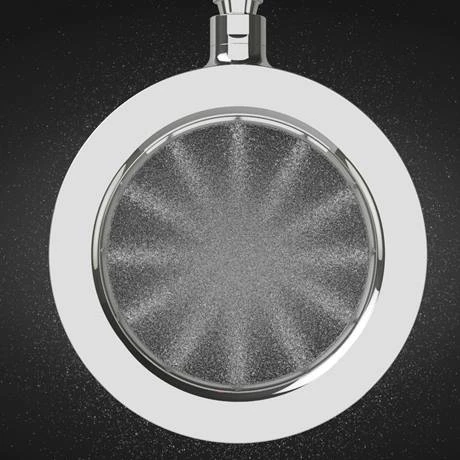

X-Jet 360 Spray
As soon as the water starts running, a large volume of air is pulled though the inner circle of the shower head, pushing the spray of water more quickly towards the user. This increased spray force results in a sensational showering experience.

The powerful X Jet streams provide an all directional spray pattern, giving the user a full water coverage during showering. Such a feeling and spray sensation cannot be realised using a conventional shower.

A conventional shower always has unidirectional streams, resulting in a loss of spray force. The X Jet design bundles the water, accelerates it, and distributes it evenly onto every part of your body and mind.

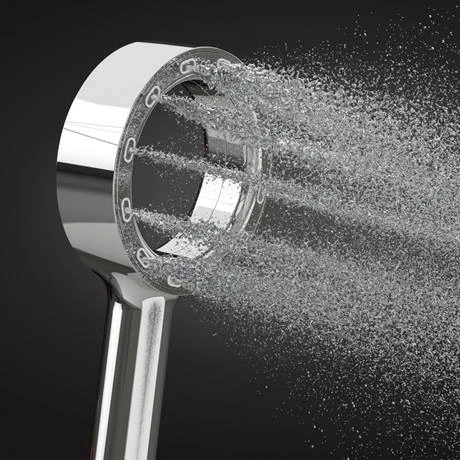

XJET 110mm Handshower 1Jet

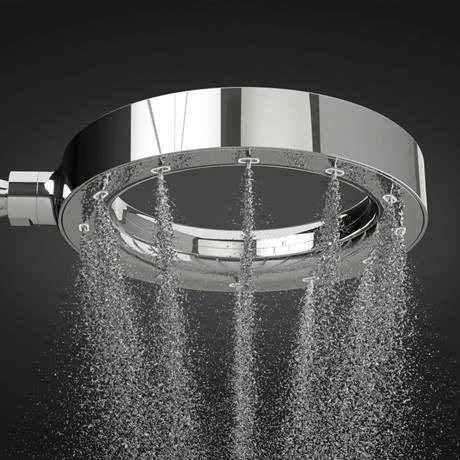

XJET Overhead shower 200mm
Integrated slidebar 25mm – 600 long freefixation
9.5kw setting for cooler season
ECO 5kw setting for warmer season
Power setting remains in position even after restart of shower for comfort
Before activating 9.5kw setting we recommend turning Volume control to full cold

Product Details

•
  Range: INDULGE Touch FLex
•
  Name: Indulge Touch Flex Smart
•
  Handshower
•
  Overhead shower
•
  Slidebar
•
  Distance rail bracket adjustable
•
  Smooth silver hose 1,5m 1/2″ x  1/2″ twistfree non conductive
•
  Shower arm 400mm with free fixation
•
  Spray force – increased spray force for sensational showering experience
•
  Power Rating: 9.5kw
•
  Minimum inlet pressure : 1.0 Bar
•
  Advantages:
•
  Fiber reinforced Tank – less limescale, extended life, energy efficient, burst resistant
•

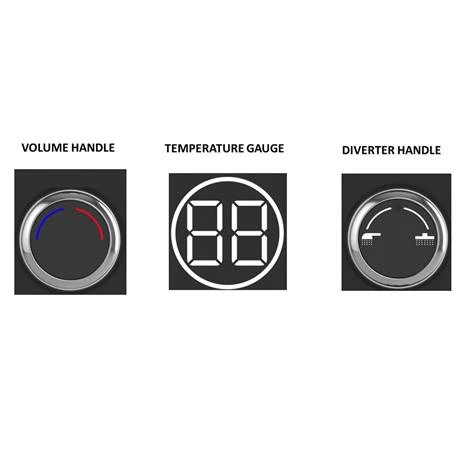

  Controls:
•
  Start/Stop button
•
  Easy Grip – temperature control
•
  Two-way ceramic diverter to switch between Overhead and Handshower
•
  Installation:
•
  Electrical connection
•
  Water entry points right – top, bottom, back
•
  All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
•
  The water connection pipe is not reversible.
•
  Use standard UK plumbing connections – compression – Push fit.
•
  Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
•
  Outlet connection 1/2″ compression and pushfit 1/2″
•
  Power Input:
•
  A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency Approvals: BEAB, CE UK?; ROHS
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded


Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Additional images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
