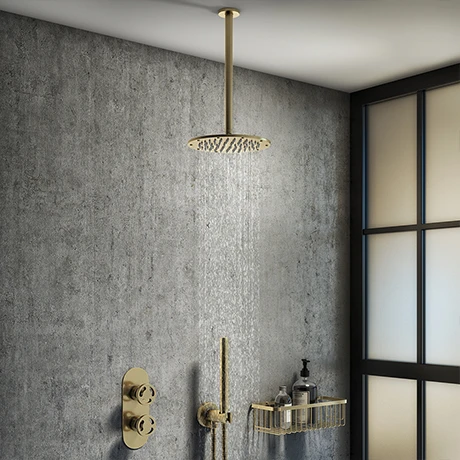

Arezzo Brushed Brass Industrial Style Shower System with Concealed Valve, Handset + Ceiling Mounted Head

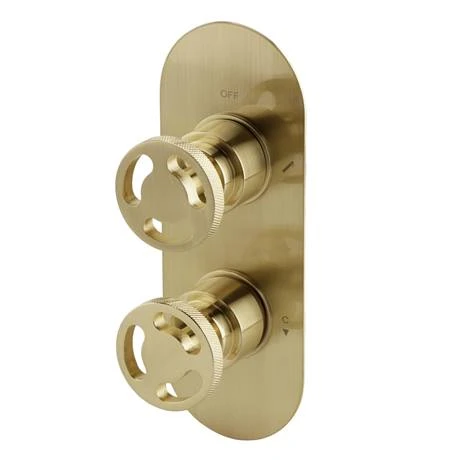

The Arezzo round brushed brass concealed thermostatic shower valve with built-in diverter features a stripped-down aesthetic with round knurled textured tap heads, perfect for creating an eye catching industrial look in your bathroom.

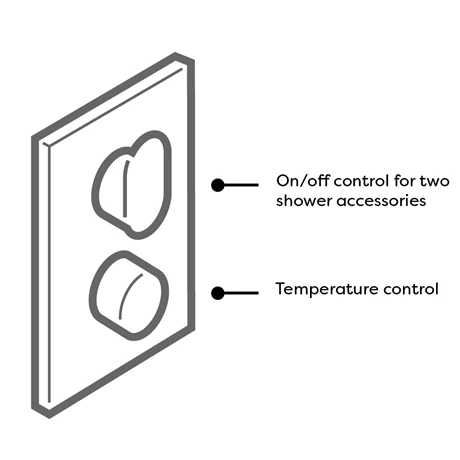

Offers thermostatic showering via two easy-to-operate controls for temperature and flow. Valve has built-in diverter to switch between two different shower accessories.

Supplied with a matching ceiling mounted 195mm round fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & pencil handset. The solid brass valve body comes with a easy to clean contemporary rounded face plate.

Shower Valves Details

• Height: 215mm
• Width: 80mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Material: Solid Brass Internals
• Valve Handles: Round
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Curved Faceplate
• For use with 2 Outlets
• Built-In Diverter
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 6.6 L/min
• 1 bar – 9.7 L/min
• 2 bar – 13.8 L/min
• 3 bar – 17.2 L/min
• 4 bar – 19.7 L/min
• 5 bar – 22.2 L/min


Shower Head with Arm Details

• Shower Head Dimensions: 195mm Diameter
• Shower Arm Length: 300mm
• Style: Modern
• Shape: Round
• Colour/Finish: Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Ceiling Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and ceiling mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 2 Year Guarantee


Shower Handset Details

• Depth: 69mm
• Height: 246mm
• Width: 60mm
• Colour/Finish: Brushed Brass
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Manufactured in solid brass
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

Shower valve Guarantee 5 Year,(1 Year on serviceable parts for example: internal components such as check valves and cartridges)

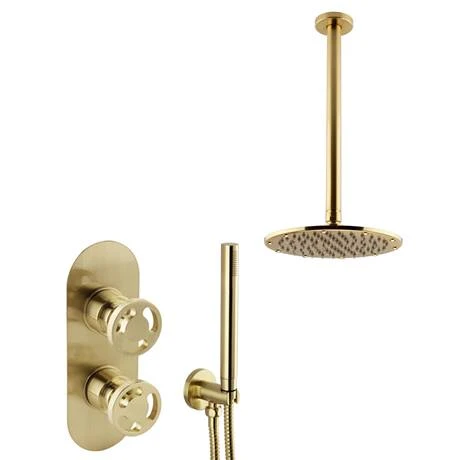

Comprises

(1) Round Modern Twin Concealed Shower Valve with Diverter
(1) 195mm Ultra Thin Round Head
(1) 300mm Round Ceiling Shower Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
