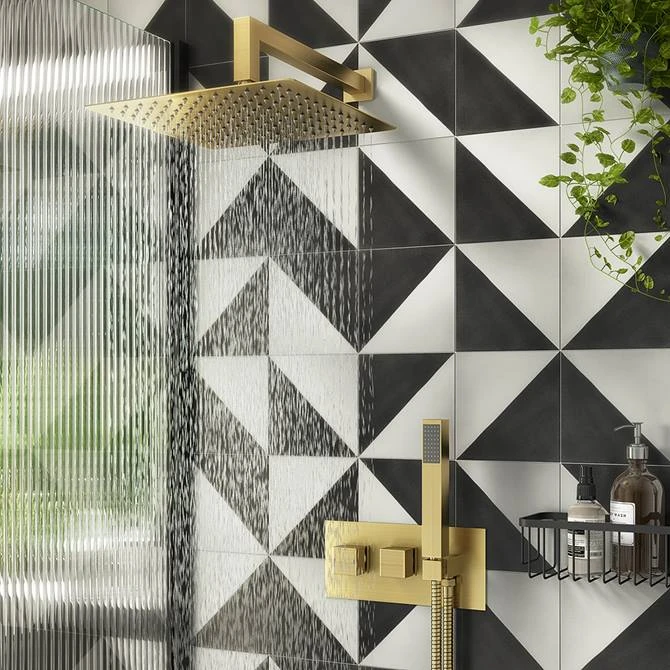

Arezzo Brushed Brass Square Shower System (300mm Fixed Head, Handset + Integrated Parking Bracket)

Bring your bathroom to life with the luxury brushed brass finish of the Arezzo concealed thermostatic control shower pack. The Arezzo brushed brass modern concealed thermostatic control shower has been fitted with a handy two outlet valve and diverter, so you can switch water flow between the sleek overhead shower and handset. You can also rest assured the clever thermostatic shower valve will always keep your water at a safe temperature. Features minimalist square handles this modern style shower valve is perfect for installing in a concealed arrangement.

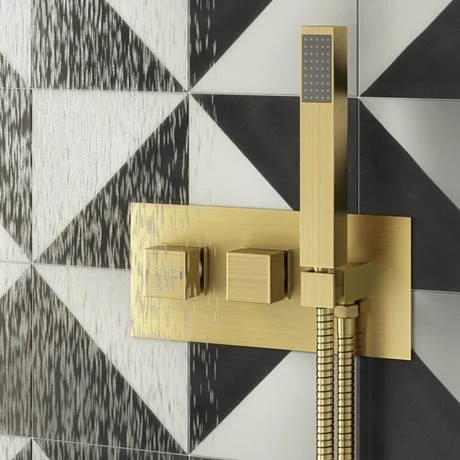

Shower Valve Details

• Width: 265mm
• Height: 120mm
• Style: Modern
• Range: Arezzo
• Type: 2 Way Shower Diverter Valve with Handset
• Valve Handles: Square
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• Concealed fitting
• Integrated parking bracket
• Rectangular backplate
• Wall mounted
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Two outlet valve with diverter to switch between bath and shower or two shower outlets
• Includes 1.5m hose and rectangular shower handset
• Shower handset dimensions:
• Height: 197mm
• Width: 30mm
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

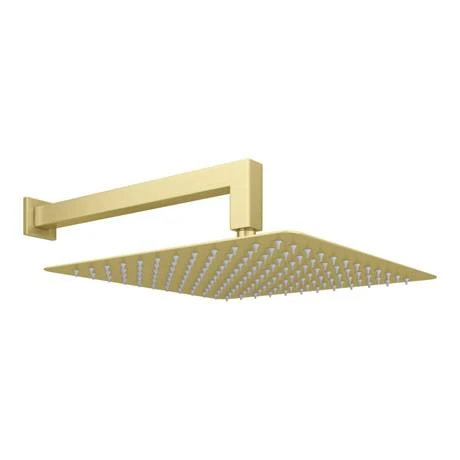

Fixed Shower Head with Arm Details

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.

All measurements are approximate

Comprises

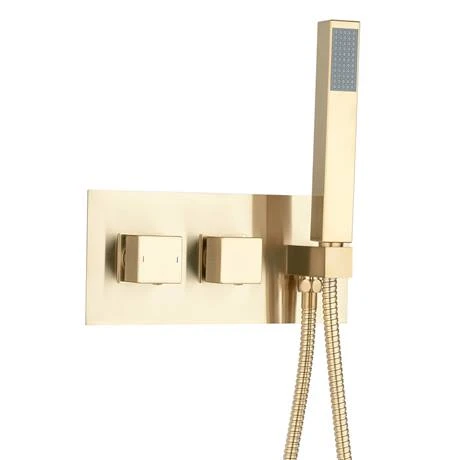

(1) Arezzo Brushed Brass Concealed Thermostatic 2-Way Valve w. Square Handles & Rectangular Shower Handset
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm

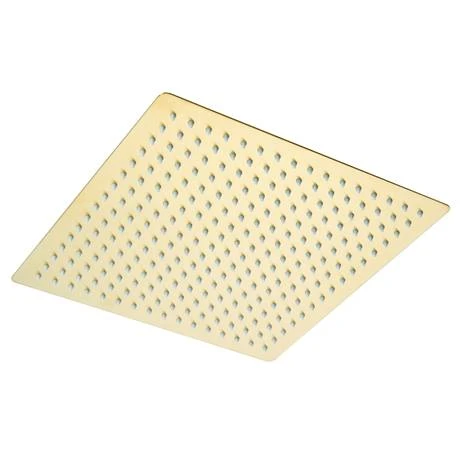

(1) Ultra Thin Square Shower Head (300 x 300mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
