Arezzo Brushed Brass Square Shower System (Valve with Fixed Shower Head + 4 Body Jets)

The on-trend Arezzo brushed brass square range brings substantial elegance to the modern bathroom. Package includes a concealed triple thermostatic shower valve, fixed shower head and 4 square body jets.

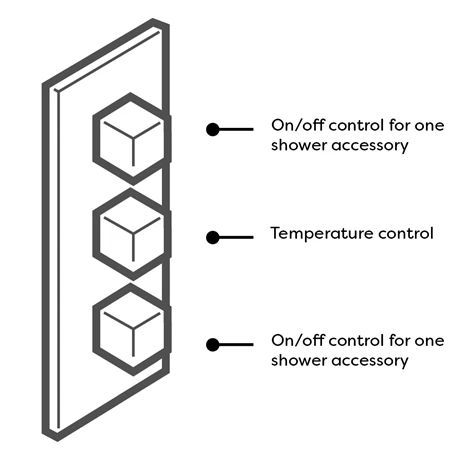

Offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously.

Shower Valves Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
  Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

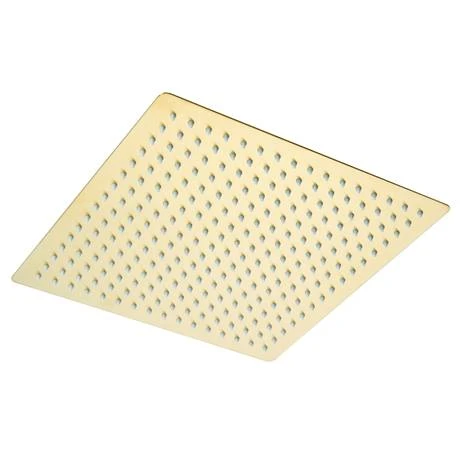

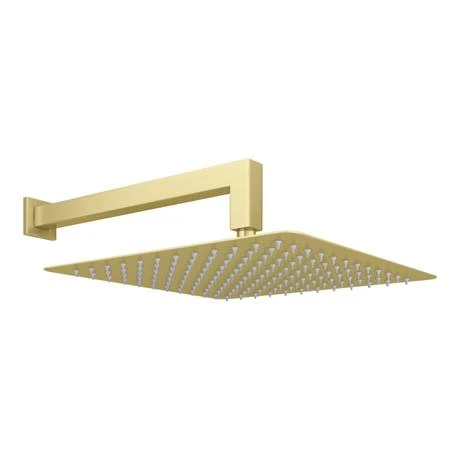

Shower Head with Arm Details

•
  Shower Head Size: 300 x 300mm
•
  Shower Arm Length: 388mm
•
  Style: Modern
•
  Shape: Square
•
  Colour/Finish: Brushed Brass
•
  Material: Brass
•
  Thickness/Profile: 3mm (excluding swivel joint)
•
  90-degree Bend
•
  Wall Mounted
•
  Pressure requirements: 0.5 bar minimum
•
  Inlet Connections: 1/2″ BSP
•
  Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

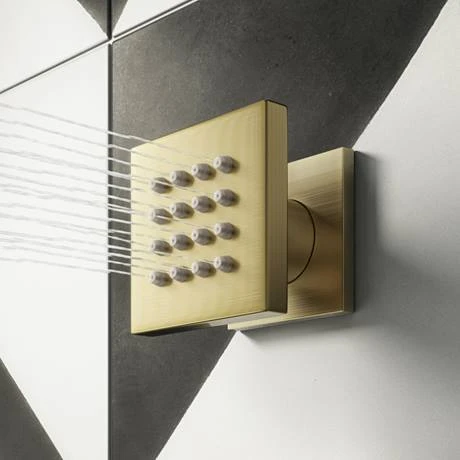

Body Jet Details

•
  Overall Size: D88 x W50 x H50mm (Approx.)
•
  Product Type: Slim Body Jet
•
  Shape: Square
•
  Brass 1/2 inch BSP thread: 18mm long
•
  Easy clean rubber nozzles
•
  Colour/Finishes: Brushed Brass
•
  Material: Brass
•
  Supplied with swivel joint

*Installation requires rear access behind the wall.

Comprises


(1) Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm
(1) Ultra Thin Square Shower Head (300 x 300mm)
(4) Modern Slim Square Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
