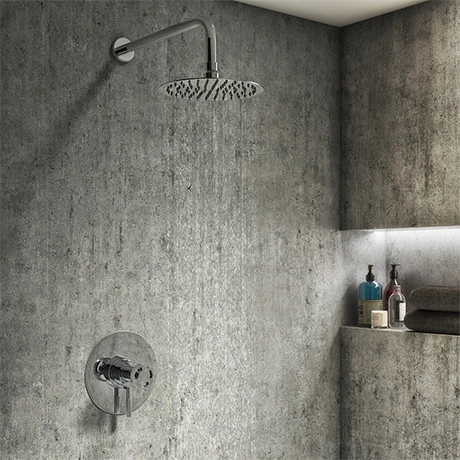

Arezzo Chrome Industrial Style Shower System with Dual Concealed Valve + Fixed Head

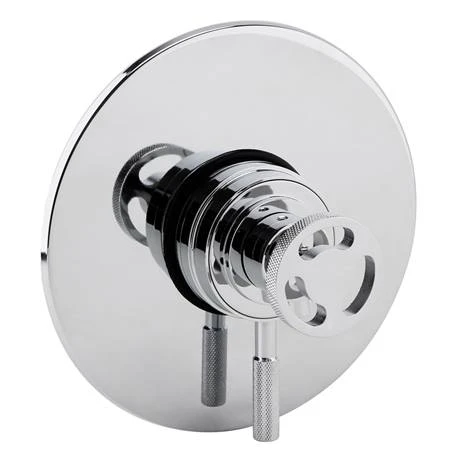

Shower Valve Details

• Back Plate Diameter: 185mm
• Projection: 152mm
• Centres: 150mm
• Outlet: 18 mm (3/4″ BSP)
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Type: Dual Concealed Shower Valve
• Valve Handles: Round
• Thermostatically controlled
• Wall Mounted
• Round Back Plate
• Water Pressure: 0.5 bar to 5 bar
• Industrial Style Detailing

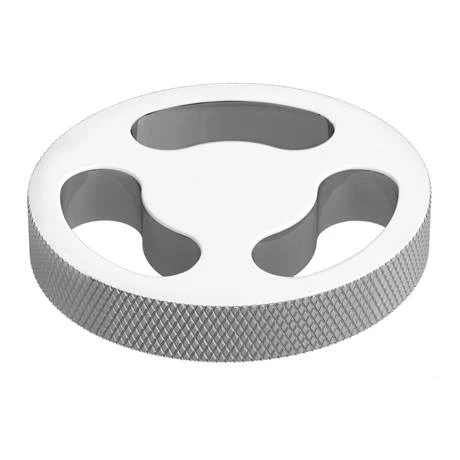

• Circular handles with a tactile knurled grips
• Easy to operate controls
• For use with 1 Outlet
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.2 L/min
• 1 bar – 10.4 L/min
• 2 bar – 14.7 L/min
• 3 bar – 18.4 L/min
• 4 bar – 20.7 L/min
• 5 bar – 23.3 L/min

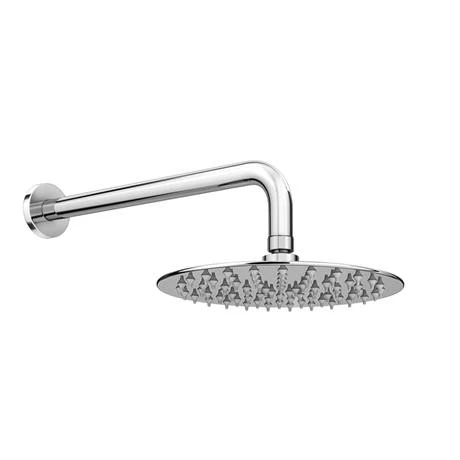

Shower Head + Arm Details

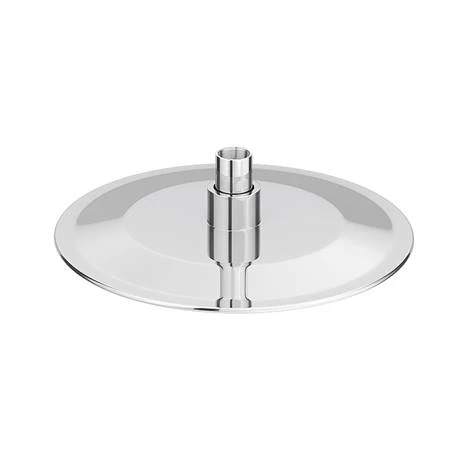

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, chrome finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Round Dual Concealed Shower Valve
(1) 200mm Ultra Thin Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
