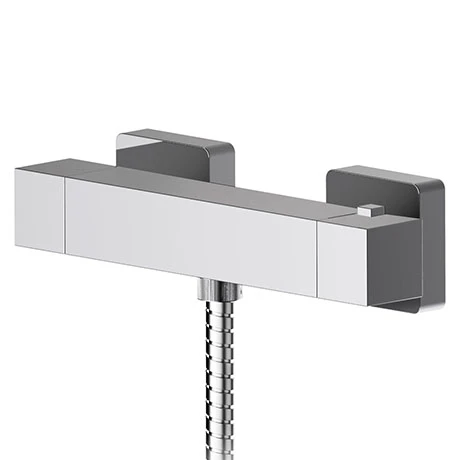

Asquiths Revival Exposed Thermostatic Shower Bar Valve – SHC5110

A time for renewal and transformation. A collection created with defined lines, each working collectively to discover a place of revival. The angular shapes of this valve will create a high impact contemporary focal point in any bathroom.

The shower valve temperature is factory pre-set to a safe 38 degrees at the temperature handle safety stop point, but under certain site conditions, calibration may be required to achieve this safety set point, if required.

Product Details

• Width: 260mm
• Height: 60mm
• Depth: 92mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Type: Thermostatic Shower Bar Valve
• Brand: Asquiths
• Product Code: SHC5110
• Style: Contemporary
• Range: Revival
• Exposed
• Wall mounted
• Bottom Outlet
• 1/4 turn ceramic disc technology for long life and smooth operation

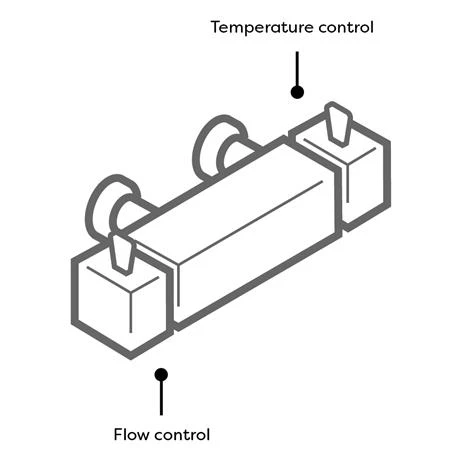

• Separate controls for temperature and flow
• Factory pre-set temperature 38°
• Suitable for water systems between 1-4 bar pressure
• Suitable for unvented mains pressure systems
• Suitable for shower pumps
• Centre to centre of inlet is 150mm
• Without shower kit (hose & handset)
• Outlet: 15 mm (1/2″ BSP)
• Designed & built in Britain

Guarantee: 20 Years
