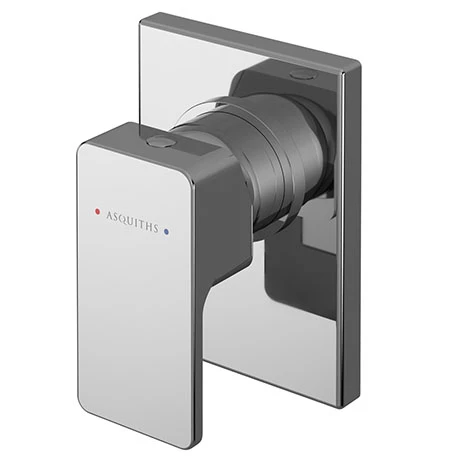

Asquiths Tranquil Manual Concealed Shower Valve – SHD5111

A place of peace and stillness. A collection where refined lines and curves meet, each product functioning with the next to create your place of tranquillity. The angular shapes of this valve will create a high impact contemporary focal point in any bathroom.

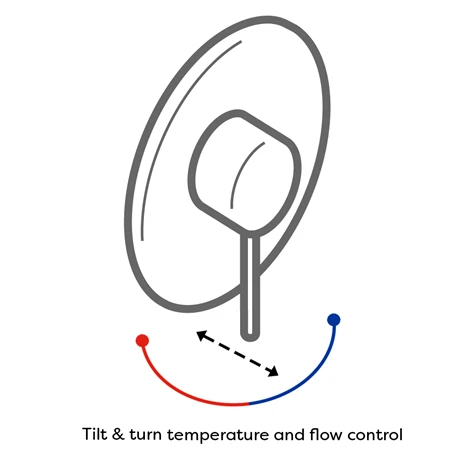

The sleek stylish handle controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature. Operates one bath / shower accessory – bath spout, slide rail kit or shower head.

Product Details

• Width: 80mm
• Height: 120mm
• Depth: 113mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Type: Manual Concealed Shower Valve
• Brand: Asquiths
• Product Code: SHD5111
• Style: Contemporary
• Range: Tranquil
• Concealed
• Rectangular Faceplate
• Water Outlet: 1
• Single lever ceramic disc technology for long life and smooth operation
• Excellent flow rates – even at low pressures
• Min operating pressure: 0.5 bar (3 bar if using Bath Filler)
• Max operating Pressure: 5 bar
• Inlet & outlet connections are all 1/2″ BSP female threads.
• Designed & built in Britain

Guarantee: 20 Years

Flow Rates

0.1 Bar – 3.4 l/m
0.5 Bar – 7.9 l/m
1 Bar – 11.2 l/m
2 Bar – 15.9 l/m
3 Bar – 19.5 l/m
