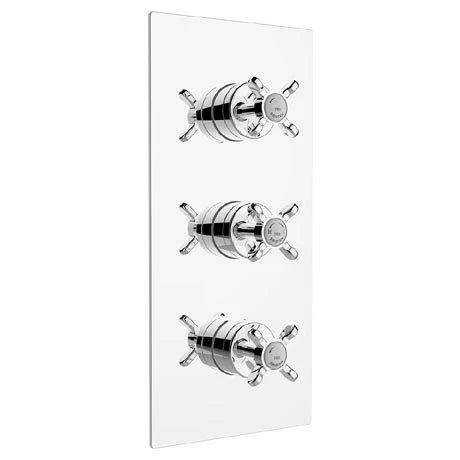

Bristan – 1901 Concealed Dual Control Three Handle Thermostatic Shower Valve – Chrome – N2-SHC3STP-C

• Finish: Chrome
• Product Type: Traditional
• Construction: Body is of brass construction
• Valve type: 2 x ¼ turn ¾“ ceramic disc on/off control with thermostatic temperature control
• Supply: Gravity (when pumped) and pressurised
• Inlet Connections: 15mm compression
• Outlet Connection: 15mm compression
• Working Pressures: Min 1.0bar, Max 8.0bar
• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Dual control – flow and temperature are controlled by separate handles, giving accurate control of both.
• Ceramic disc flow valve giving low maintenance and an easy ¼ turn on/off and flow control.
• Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature. Designed to meet requirements of BS EN 1287:1999 and BS EN 1111:1999.
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of scalding.
• Factory set to a maximum of 42 oC to eliminate the ability to select an unsafe temperature, this can be adjusted to suit user preference.
• Swivel inlet elbows with 150mm centres, valve can be fed from top, bottom or rear
• Hose outlet included
• Chrome plated to BS EN 248.

Guarantee: 5 years covering manufacturing faults
