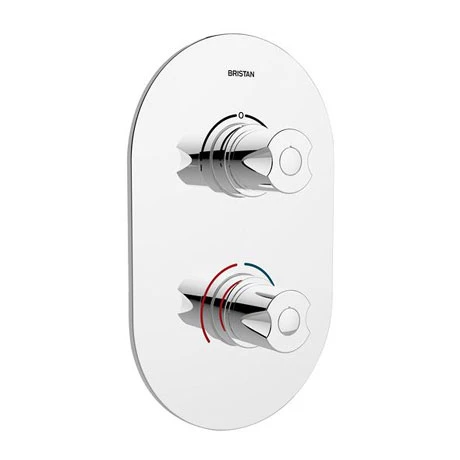

Bristan – Artisan Thermostatic Recessed Dual Control Valve with Integral Diverter – AR3-SHCDIV-C

The Bristan Artisan range features dual control and thermostatic cartridge in sleek modern styling. This Thermostatic Recessed Dual Control Valve incorporates a diverter that diverts the water flow between shower heads, body jets or a bath filler. Flow and temperature are controlled separately giving accurate control of both.

Product Details

• Brand – Bristan
• Finishes – Chrome
• Product Type – Contemporary
• Construction – Body is of brass construction and is designed to conform to BS EN 200
• Valve Type – Ceramic disc valve
• Supply – Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections – 15mm Compression connections
• Water Pressure – Working pressures 0.2-5.0 Bar
• Maximum Static Pressure – 10 Bar
• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply temperature is 5°c
• Maximum hot water supply temperature is 80°c
• Flow rates at 0.2 Bar (open outlet without flow regulators) 8.0 l/min
• Cartridge can be accessed from the front
• WRAS approved

Guarantee – 5 years covering manufacturing faults
