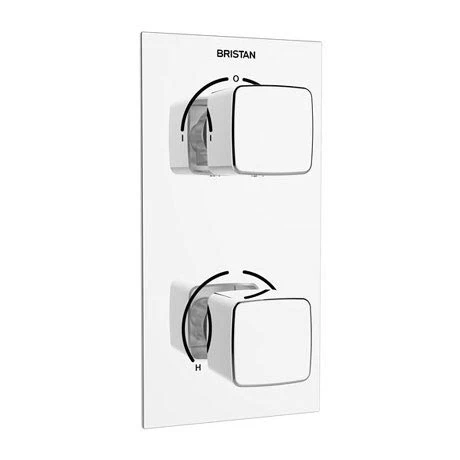

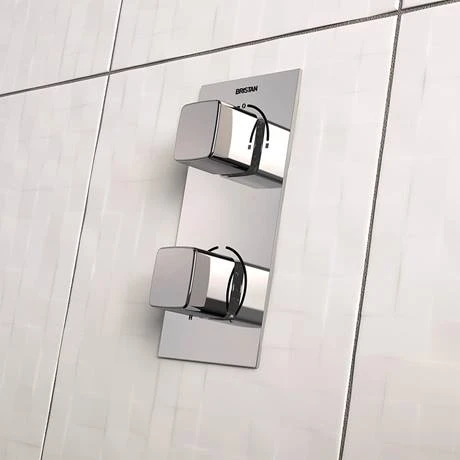

Bristan – Cobalt Thermostatic Recessed Dual Control Shower Valve with Integral Diverter – COB-SHCDIV-C

The Cobalt range from Bristan features softened angles and sleek lines to create a big impact, even in smaller bathrooms. the Cobalt Thermostatic Recessed Dual Control Shower Valve with Integral Diverter is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with dual controls that regulate the temperature and flow separately.

Product Details

• Brand – Bristan
• Finishes – Chrome
• Product Type – Contemporary
• Construction – Body is of brass construction and is designed to conform to BS EN 200
• Valve Type – Ceramic disc valve
• Supply – Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections – 15mm Compression connections
• Water Pressure – Working pressures 0.2-5.0 Bar
• Maximum Static Pressure – 10 Bar
• Chrome plated to BS EN 248
• Suitable for cavities between 58-75mm
• Minimum cold water supply temperature is 5°c
• Maximum hot water supply temperature is 80°c
• Flow rates at 0.2 Bar (open outlet without flow regulators) 8.0 l/min
• Requires rear access to service the filters
• Cartridge can be accessed from the front
• WRAS approved

Guarantee – 5 years covering manufacturing faults
