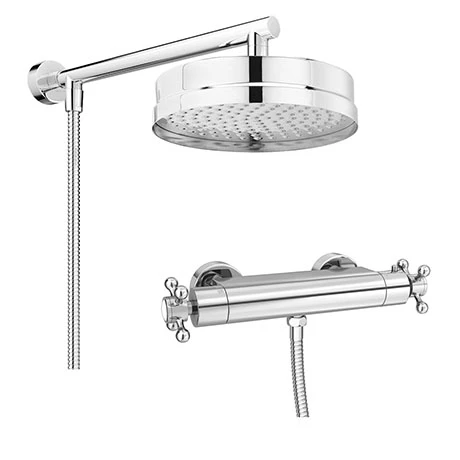

Chatsworth Traditional Crosshead Shower Bar Valve + 200mm Overhead Shower

The Chatsworth exposed thermostatic bar valve with 200mm fixed overhead rainfall shower head is part of our traditional collection of bathroom products. Classic styling with a chrome finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls with classic white indices, one controls the flow and the other controls the temperature.

Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle. Supplied with a High quality flexible shower hose which measures 1.75m long and fits standard hose connections (1/2″ BSP).

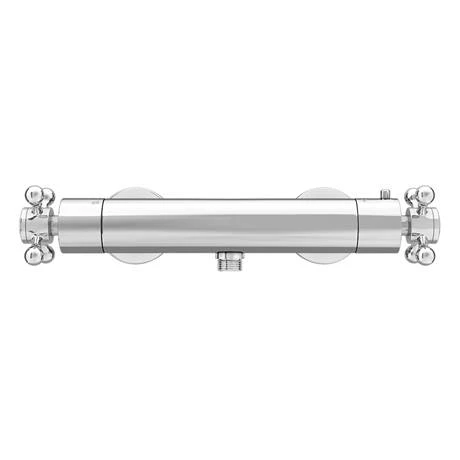

Shower Valve Details

• Width: 304mm
• Depth: 100mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Style: Traditional
• Type: Bar Valve

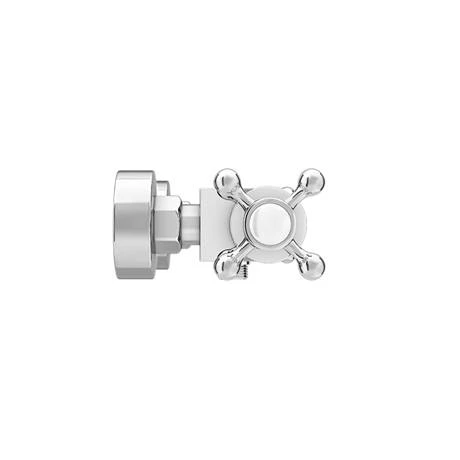

• Handles: Cross-head
• Ceramic White Indices
• Surface / Wall Mounted
• Bottom Outlet
• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device

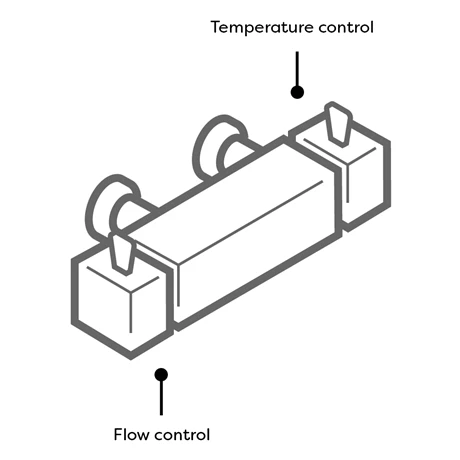

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Shower Head Details

• Shower Head Size: 200mm
• Arm Length: 410mm
• Colour/Finish: Polished Chrome
• Shape: Square
• Wall Mounted
• Overhead rainfall shower with swivel joint
• Hose Length: 1.75m
• Pressure requirement 0.5 bar minimum
• Sleek minimalist round design
• Water flow comes from flexible stainless steel hose
• 1/2″ BSP connections

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Chatsworth 200mm Rainfall Shower Head with 1.75m Flexible Hose
(1) Chatsworth Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
