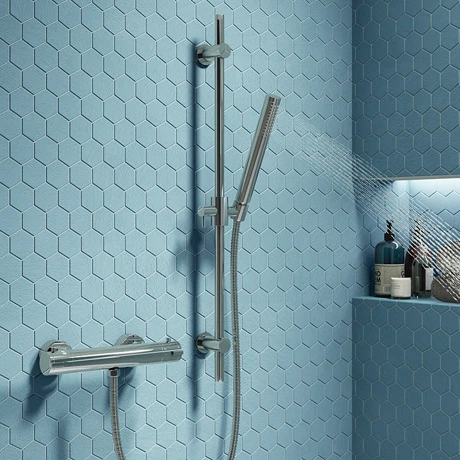

Cruze Chrome Round Bar Shower Valve inc. Slide Rail Kit with Pencil Handset

Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance.

Valve comes with a matching minimalist rounded design slider, designed and manufactured using the finest methods and materials to ensure a high quality product. With it’s contemporary styling the Cruze chrome pencil style shower handset shower will naturally blend in to and compliment any modern bathroom. The practical slider bracket allows you to move the head up and down with ease.

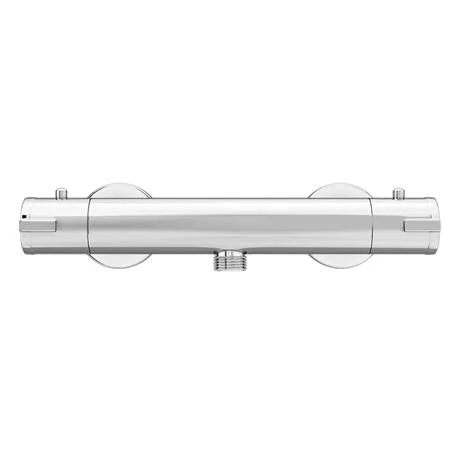

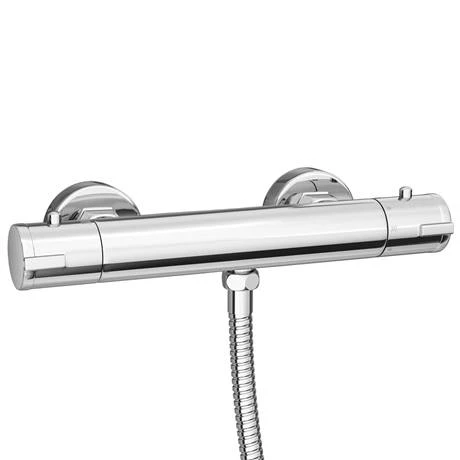

Bar Shower Valve Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Type: Bar Shower Valve
• Style: Modern
• Shape: Round
• Fitting: Exposed
• Colour/Finish: Chrome
• Material: Brass Internals
• 1 Bottom Outlet
• Surface / Wall Mounted
• Thermostatic
• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 8.2 L/M
• 1 bar – 12.3 L/M
• 2 bar – 17.9 L/M
• 3 bar – 22.1 L/M
• 4 bar – 25.6 L/M
• 5 bar – 28.6 L/M

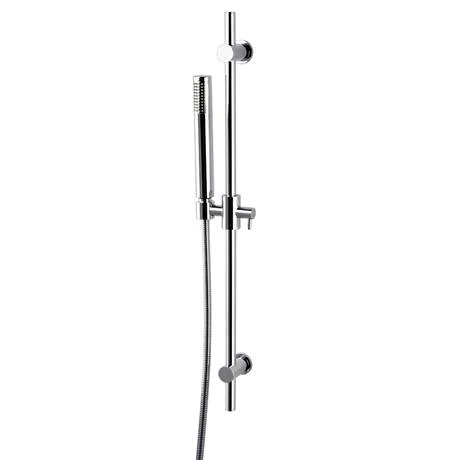

Slide Rail Kit Details

• Height: 700mm
• Colour: Chrome
• Finish: Polished
• Style: Modern
• Shape: Round
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Eye-catching finish

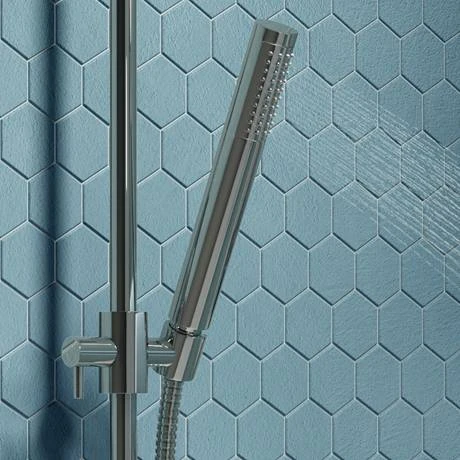

• Handheld Pencil Handset
• Adjustable height shower head holder bracket
• Easy clean
• 2 Year Guarantee


Shower valve Guarantee 5 Year, (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Cruze Chrome Round Thermostatic Bar Shower Valve
(1) Cruze Chrome Modern Slider Rail Shower Kit with Pencil Shower Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
