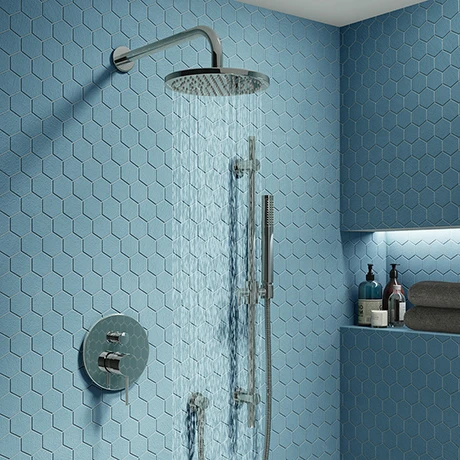

Cruze Chrome Shower System (Valve inc. 200mm Fixed Head + Slide Rail Kit with Handset)

The Cruze modern chrome plated single lever concealed manual shower valve with diverter, characterised by its stylish round handle which controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature.

The ideal solution for those updating their shower and bath on a budget, this sleek valve with a high performance diverter doesn’t compromise on style or function, allows the user to divert the water between 2 outlets (200mm fixed rainfall shower or shower handset).

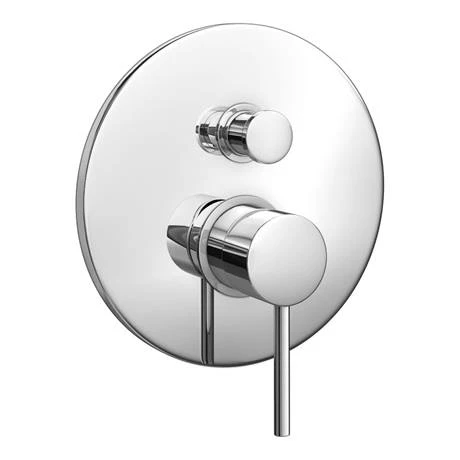

Shower Valve Details

• Diameter: 170mm
• Style: Modern
• Single Lever
• Concealed
• Round Back Plate
• Colour/Finish: Polished Chrome
• Material: Durable Brass
• Water Outlets: 2
• Operating pressure 0.5 bar up to 5 bar
• Recessed for streamlined appearance
• Ceramic disc control for smooth action and no drips
• Simple lever operation for flow and temperature
• Built-in diverter – Knob allows the user to divert the water between 2 outlets
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

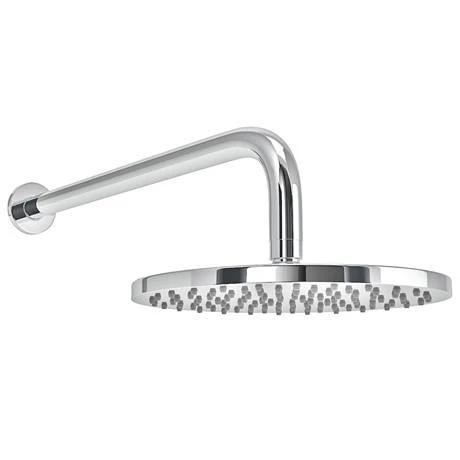

Fixed Shower Head Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Rainfall Effect
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.

• 2 Year Guarantee

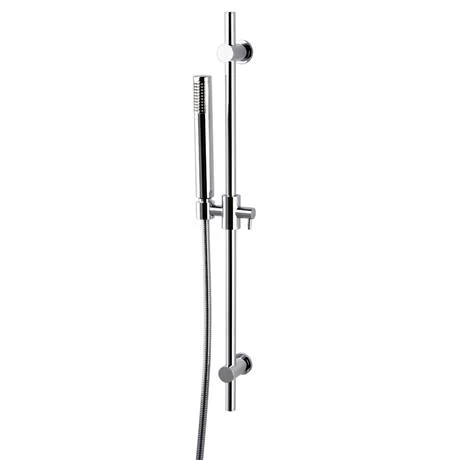

Slider Rail Shower Kit Details

• Height: 700mm
• Colour: Chrome
• Finish: Matt
• Style: Modern
• Shape: Round
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Eye-catching finish

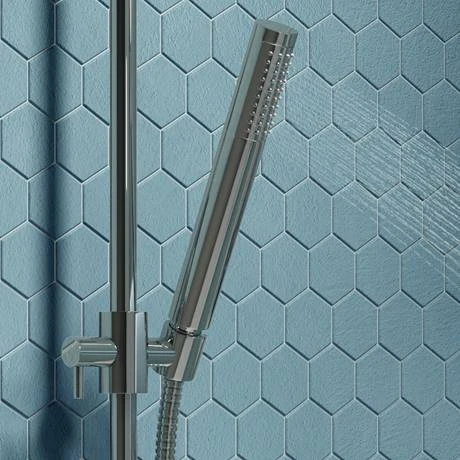

• Handheld Pencil Handset
• Adjustable height shower head holder bracket
• Easy clean
• Handset enables you to direct water to where it’s needed
• 2 Year Guarantee

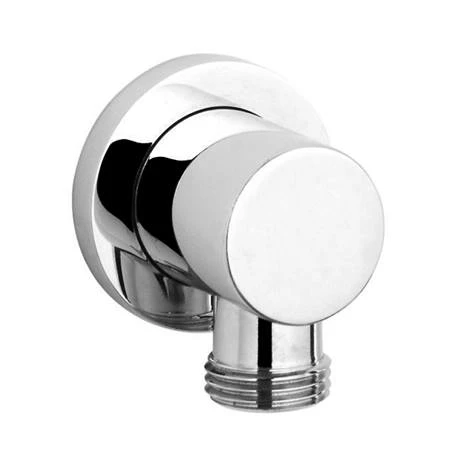

Round Elbow Details

• Diameter: 45mm
• Modern Design
• Colour/Finish: Polished Chrome
• Manufactured from high quality materials
• Connection: 1/2″ BSP
• For use with concealed shower valves
• Compatible with any shower hose

Shower valve Guarantee 5 Year, (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) 200mm Round Shower Head
(1) Round Shower Arm
(1) Round Concealed Manual Shower Valve with Diverter
(1) Modern Slider Rail Shower Kit with Pencil Shower Handset
(1) Round Elbow for Concealed Showers

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
