Hansgrohe Ecostat S Round Complete Shower Set with Croma Select S Shower Slider Rail Kit

The hansgrohe Ecostat S Round Complete Shower Set with Croma Select S Shower Slider Rail Kit promises you showering indulgence on a grand scale. The Ecostat S Thermostat 2 Function Concealed Finish Set operates the fixed head and shower handset and features a thermostat cartridge with an adjustable temperature limit. The Croma Select S 180 shower head has a built in Select button that switches effortlessly between the Rain and IntenseRain spray patterns, perfect for rinsing shampoo out of your hair. The Croma Select S Vario 3 Spray Hand Shower combines functionality, ergonomics and design. It features three spray functions for an energising, invigorating showering experience.

Fixed Head Details

• Shower Head Size: 180mm
• Spray Plate Finish: White
• Spray Type: Rain, IntenseRain
• Flow Rate Rain: 17 l/min at 3 bar
• Flow Rate IntenseRain: 16 l/min at 3 bar
• Select button on overhead shower
• Material Spray Disc: Plastic
• Installation: Ceiling or wall
• Connection thread G ½
• Operating Pressure: min 1.5 bar / max 10 bar
• Winner of the iF product design award 2016

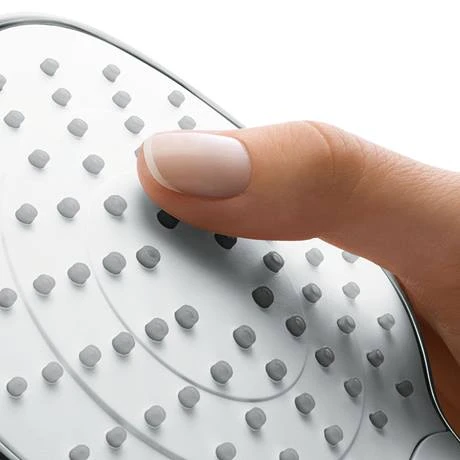

• QuickClean – Remove limescale deposits easily by rubbing them off
• WRAS and KIWA approved

Shower Arm Details

• Finish: Chrome
• Projection: 389mm
• Wall-mounted
• Installation Type: Exposed installation
• Connection thread R ½
• Connection dimension DN15

Outlet Elbow Details

• Finish: Chrome
• Connection thread ½”
• Shower hose connection with pivot joint
• Plastic connection angle with metal ball joint
• For use with concealed installations
• KIWA approved

Shower Kit Details

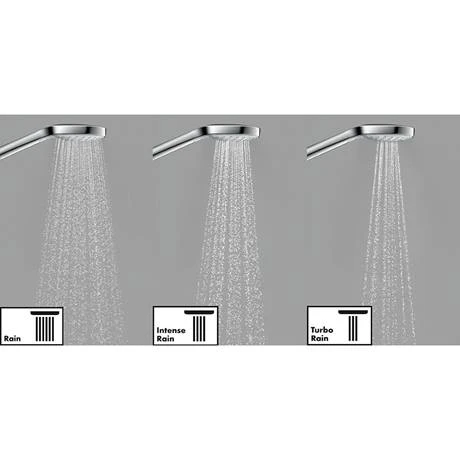

• Spray Pattern: Rain, IntenseRain, TurboRain
• Shower Head Size: 110mm
• Finish: White / Chrome
• Pivot connectors prevent hose from tangling
• Select button to comfortably switch between spray modes
• Chrome-plated plastic wall supports
• Slide inclination angle can be adjusted by 45°
• Fully chrome-plated shower slide
• Maximum Flow Rate: 15 l/min at 3 bar
• 22mm width of shower bar
• QuickClean – Remove limescale deposits easily by rubbing them off

iBox Details

• Adjustable clamping collar
• G¾ connections; G1 connection possible with provided reductions
• Patented sound proofing
• Support points for spirit level
• Includes flush block
• Marking aid for plating
• Connection thread Rp ¾
• Rotationally-symmetrical installation
• Installation Depth: from 80 to 108mm
• WRAS 1304305
• WRAS 1503309
• Kiwa UK 1405706

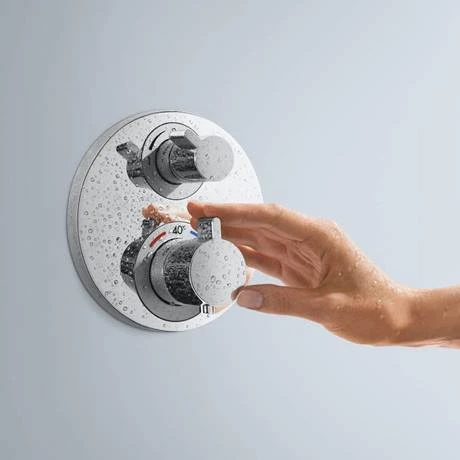

Finish Set Details

• 2 Outlets
• Flow Rate at 3 Bar: 26 l/min
• Thermostat Cartridge
• Shut-off / Diverter valve
• Safety Lock at 40°C
• Temperature limitation adjustable
• Comprises of handles, sleeve, mixing unit, escutcheon, shut-off / diverter valve
• Recommended Operating Pressure: 1.0 Bar – 5.0 Bar

5 Year Guarantee

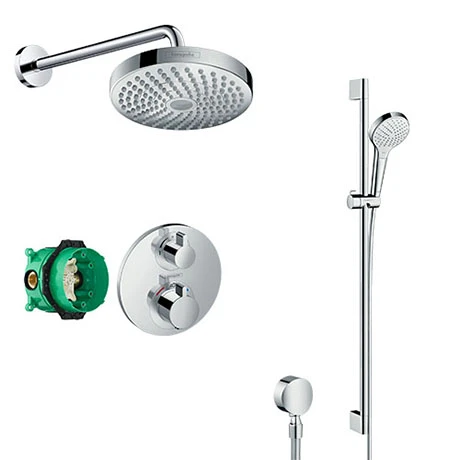

Comprises

(1) Croma Select S 180 2 Spray Shower Head – White/Chrome – 26522400
(1) Crometta S 240 389mm Shower Arm – Chrome – 27413000
(1) FixFit Wall Outlet S with Non-Return Valve and Pivot Joint – 27506000
(1) iBox Universal Basic Set – 01800180
(1) Croma Select S Vario 3 Spray Shower Slider Rail Kit 90cm – 26572400
(1) Ecostat S Thermostat 2 Function Concealed Finish Set – 15758000
