Heritage Dawlish Concealed Valve with 6″ Fixed Head & Adjustable Riser – Vintage Gold – SDCDUAL06

Heritage’s elegant range of complete showers are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates.

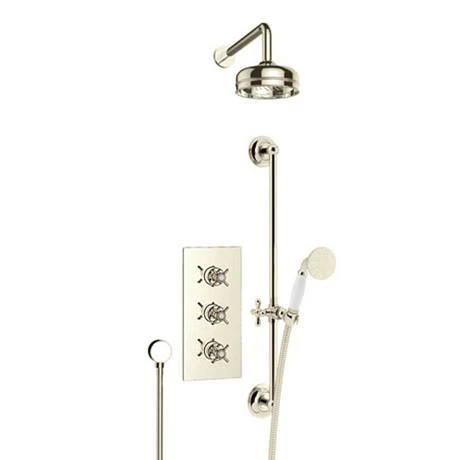

Offering the ultimate showering experience, the classic Dawlish shower features a 6″ fixed head and arm, an adjustable riser and a dual control thermostatic shower valve. The sleek elegance and timeless style makes it ideal for a traditional bathroom.

Product Details

• Brand – Heritage Bathrooms
• Product Code – SDCDUAL06
• Finish – Vintage Gold
• Construction – Body is of brass construction
• Valve type – Thermostatic

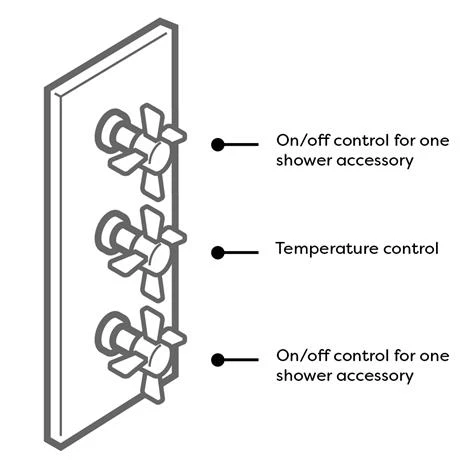

• Operation – Dual control
• Connection Inlet – 15mm compression elbows with 150mm centres
• Connection outlet – 15mm compression
• Working pressure range – 0.2 – 5.0 bar
• Flow rate at 0.2 bar – 9.0 l/m from each stopcock, 12.9 l/m from both stopcocks together
• Plumbing system – All, preferably balanced
• Temperature – Preset 42°C
• Chrome plated to BS EN 248
• Manufactured to comply with WRAS
• Minimum fitting depth 45mm
• Hose outlet included
• Ceramic Disc

5 year guarantee

Flow Rates

0.2 Bar – (Through Handset) 7.7 l/m
0.5 Bar – (Through Handset) 14.2 l/m
1.0 Bar – (Through Handset) 20.7 l/m
2.0 Bar – (Through Handset) 29.2 l/m
3.0 Bar – (Through Handset) 35.8 l/m
5.0 Bar – (Through Handset) 46.2 l/m
