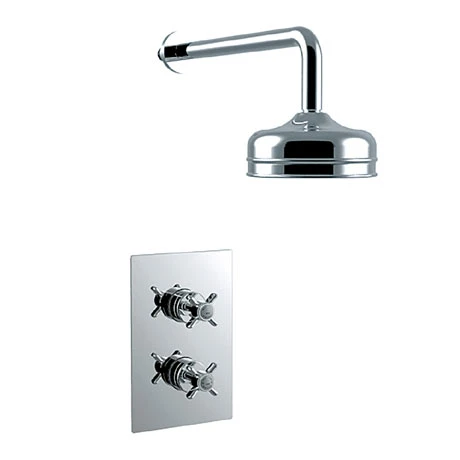

Heritage – Dawlish Concealed Valve with 6″ Fixed Head – Chrome – SDCDUAL02

Heritage’s elegant range of complete showers are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates.

This classic Dawlish shower features a 6″ fixed head and arm with a dual control thermostatic shower valve. The sleek elegance and timeless style makes it ideal for a traditional bathroom. Available in chrome and gold and quality assured by a 5 year guarantee.

Product Details

• Brand – Heritage Bathrooms
• Product Code – SDCDUAL02
• Finish – Chrome
• Construction – Body is of brass construction
• Valve type – Thermostatic
• Operation – Dual control
• Connection Inlet – 15mm compression elbows with 150mm centres
• Connection outlet – 15mm compression
• Working pressure range – 0.1 – 5.0 bar
• Flow rate open outlet – 9.0 l/m at 0.2 bar
• Plumbing system – All, preferably balanced
• Temperature – Preset 42°C
• Chrome plated to BS EN 248
• Manufactured to comply with WRAS
• Minimum fitting depth 45mm
• Ceramic Disc

5 year guarantee

Flow Rates

0.2 Bar – (Handset) 7.5 l/m
0.5 Bar – (Handset) 14.1 l/m
1.0 Bar – (Handset) 21 l/m
2.0 Bar – (Handset) 30.5 l/m
3.0 Bar – (Handset) 37.3 l/m
5.0 Bar – (Handset) 48.2 l/m
