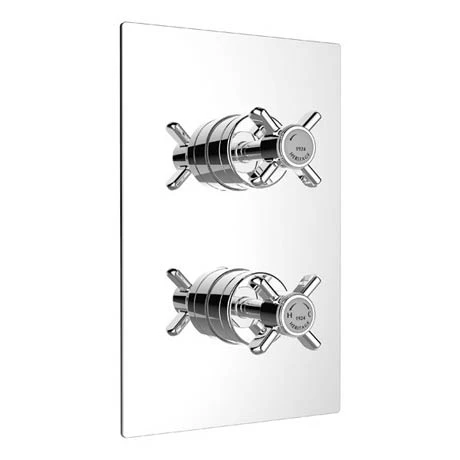

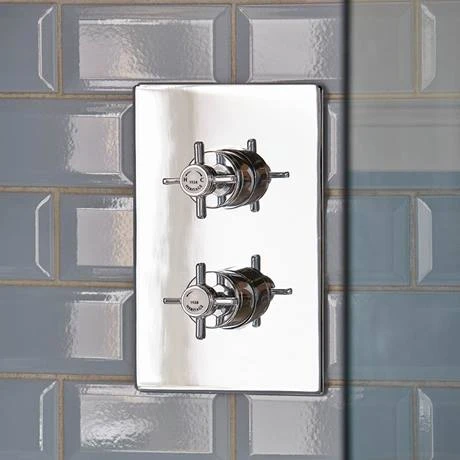

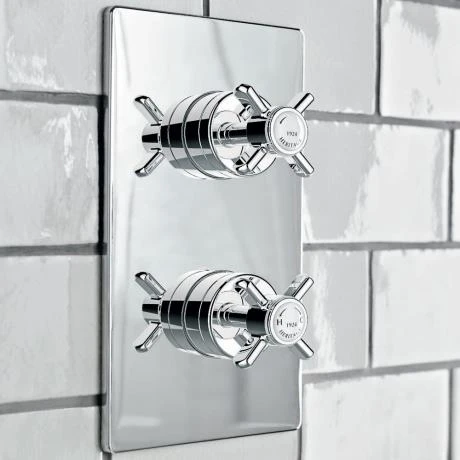

Heritage – Dawlish Dual Control Recessed Valve – Chrome – SDC04

The luxury traditional Dawlish dual control concealed thermostatic shower valve, manufactured from brass with a polished chrome finish, Heritage’s elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.

Product Details

• Height – 255mm
• Width – 165mm
• Projection – 49-79mm
• Product Code: SDC04
• Finish: Chrome
• Product Type: Traditional
• Construction: Body is of brass construction & is designed to conform to BS EN 2000
• Valve Type: Ceramic Disc Valve
• Supply: Suitable for all plumbing systems, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature
• Inlet Connections: 15mm Compression connections
• Working Pressures: Min 0.2bar, Max 5.0bar
• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply temperature is 5ºC
• Maximum hot water supply temperature is 80ºC
• Flow rate at 0.2bar (open outlet without flow regulators) is 9LPM
• Cartridge serviceable from the front.

• Manufactured to comply with WRAS


Concealed valve. Suitable for use with either a flexible kit or fixed head.

Guarantee – 5 years covering manufacturing faults.

Flow Rates

0.1 Bar – 3.9 l/m
0.2 Bar – 7.5 l/m
0.5 Bar – 14.1 l/m
1.0 Bar – 21 l/m
2.0 Bar – 30.5 l/m
