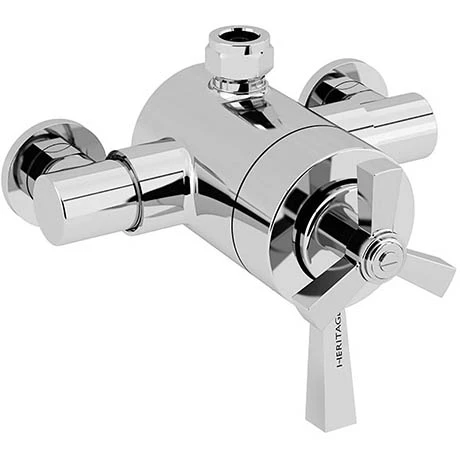

Heritage Gracechurch Exposed Shower Valve with Top Outlet Connection – SGRDCT03

The luxury traditional Gracechurch Twin Concealed Shower Valve with Top Outlet Connection, manufactured from brass with a polished chrome finish, Heritage’s elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.

Product Details

• Product Code: SGRDCT03
• Finish: Chrome
• Product Type: Traditional
• Valve Type: Ceramic Disc Valve
• Supply: Suitable for all plumbing systems
• Inlet Connections: 15mm Compression
• Working Pressures: Min 0.1bar, Max 5.0bar
• Chrome plated to BS EN 248
• Maximum Temperature: Pre-set to 42oC
• Supplied with 2 x 8 l/min. flow regulators
• Adjustable inlet centres between 136mm and 158mm
• Factory fitted regulators means this is a water saving shower
• Thermostatic valve
• Wall mounted

5 Year guarantee covering manufacturing faults

Flow Rates

0.2 Bar – (Through Handset) 6.71 l/m
0.5 Bar – (Through Handset) 10.6 l/m
1.0 Bar – (Through Handset) 15 l/m
2.0 Bar – (Through Handset) 15.2 l/m
3.0 Bar – (Through Handset) 16.6 l/m
5.0 Bar – (Through Handset) 15.5 l/m
