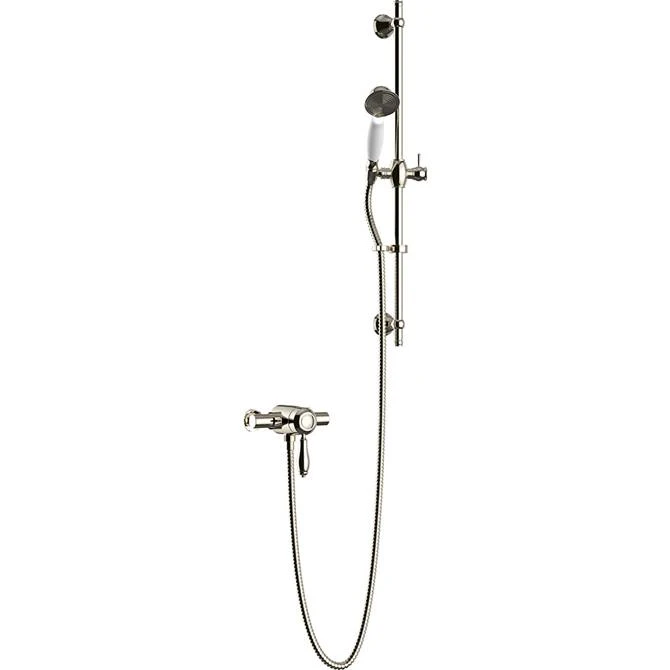

Heritage – Ryde Mini Valve with Flexible Kit – Vintage Gold

The classic Ryde exposed mini shower valve with flexible shower kit from Heritage Bathrooms, this enchanting Ryde shower comes in a luxury vintage gold finish, add sparkling glamour to any bathroom. Comes with a 5 year guarantee.

Product Details

• Slider height – 636mm
• Valve projection- 115mm
• Valve width – 110-155 (centres)
• Product Code – SLCSINMIN04
• Colour/Finish – Vintage Gold
• Product Type – Traditional
• Construction – Body is of brass construction
• Cartridge Type – Thermostatic Cartridge
• Supply – Suitable for all plumbing systems preferably balanced
• Inlet Connections – 15mm Compression Elbows
• Outlet Connections – G 1/2″
• Working Pressures – Min 0.1bar, Max 5.0bar
• Single control – Flow & temperature are controlled sequentially.
• Thermostatic cartridge maintains showering temperature to +/-1 by compensating for changes in the incoming water temperature & pressure providing a stable outlet temperature.
• Automatic shut off in the event of hot or cold water failure, thus reducing the risk of injury.
• Factory set to a minimum of 41ºC to eliminate the ability to select an unsafe temperature, this can be adjusted to suit user preference.
• Swivel inlet elbows with 110-155 centres, valves can be fed top, bottom or rear.

Compliance & Approvals – Manufactured to comply with WRAS

Guarantee – 5 Year

Flow Rates

1.0 Bar – (Handset) 6.7 l/m
2.0 Bar – (Handset) 7.2 l/m
3.0 Bar – (Handset) 7.5 l/m
5.0 Bar – (Handset) 7.8 l/m
