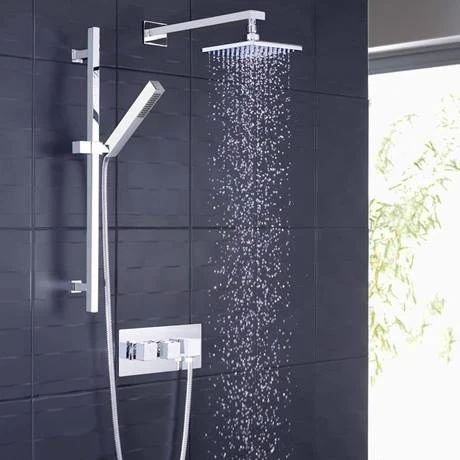

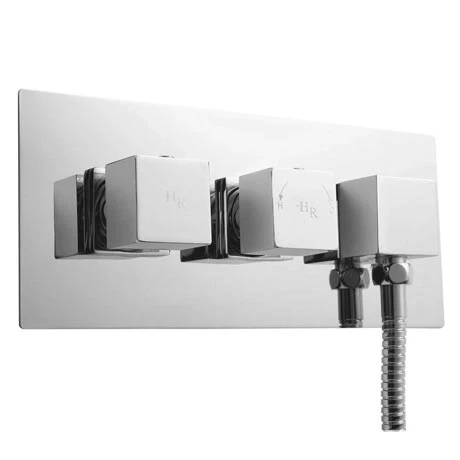

Hudson Reed Kubix Twin Concealed Thermostatic Shower Valve with Diverter & Outlet – A3067

The Kubix range from Hudson Reed, this Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow.

Diverts between two shower accessories: fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

Product Details

• Height – 280mm
• Width – 120mm
• Depth – 134.5mm
• Range – Minimalist Square
• Colour/Finish – Polished Chrome
• Material – Solid Brass
• Water Pressure – MP – 0.5 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain

Guarantee – 20 Year

Flow Rates

0.1 Bar – N/A l/m
0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
