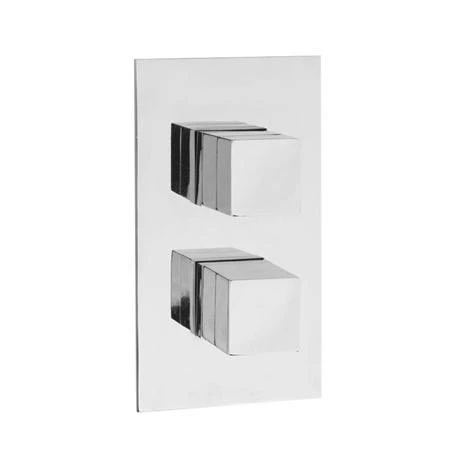

Hudson Reed Lennox Twin Concealed Thermostatic Shower Valve – SQR3210

The Lennox shower range offers cool sophistication and an ultra slim profile for a minimalist finish, perfect for co-ordinating with our range of slimline shower heads. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow.

Operates one shower accessory – fixed head or slide rail kit.

Features

• Dimensions – H215 x W120 x D134.5mm
• Finish – Chrome
• Material – High quality brass & ABS
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Water Pressure LP1 – 0.1 bar pressure minimum
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• TMV2 & TMV3 Approved
• WRAS Approved

20 year guarantee

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
