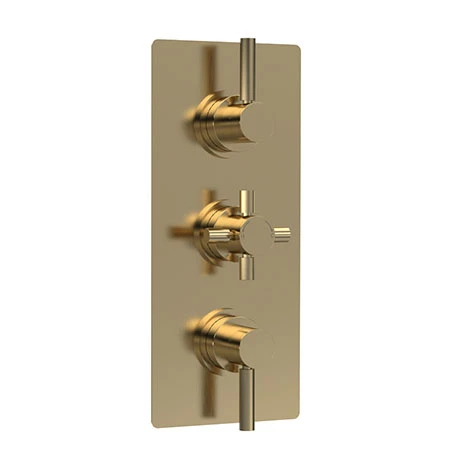

Hudson Reed Tec Pura Plus Triple Concealed Thermostatic Shower Valve – Brushed Brass – A8003

The Tec Pura shower valve incorporates thermostatic control with the most up to date design. A thermostatically controlled shower with separate controls for the flow & temperature. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Pipework is concealed for a clean look.

Features easy to operate controls, the top control operates one shower accessory the centre control adjusts the temperature and the bottom control operates the other shower accessory.

Operates two shower accessories separately or simultaneously.

Product Details

•
  Height – 280mm
•
  Width – 80mm
•
  Depth – 136mm
•
  Colour/Finish – Brushed Brass
•
  Material – High quality brass & ABS
•
  Water Pressure – LP1 – 0.1 bar pressure minimum
•
  Can be fitted vertically or horizontally.
•
  Accurate flow control.
•
  Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
•
  Full thermal protection to prevent scalding in the event of hot or cold water shut off.
•
  In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
•
  The patented cartridge is highly resistant to calcium build up – even in hard water areas.
•
  Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
•
  Excellent flow rates – even at low pressure.
•
  The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
•
  Simply remove the cartridge, turn 180 degrees and replace.
•
  Suitable for all plumbing systems

Made in Britain and TMV2/TMV3 approved – ensuring it has been tested to the highest standards.

Guarantee – 3 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1 Bar – 20 l/m
2 Bar – 29 l/m
3 Bar – 44 l/m
