Milan Shower Package (Rainfall Wall Mounted Head, Handset + Freeflow Bath Filler)

The minimalist Milan shower package, this quality shower comprises of a triple concealed thermostatic shower valve with built-in diverter, ultra sleek wall mounted rain effect fixed shower head, shower handset and a slimline freeflow bath filler.

The stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls. The diverter allows you to switch between three different outlets.

Our range of Showers are ideal for renewing the style of your bathroom affordably.

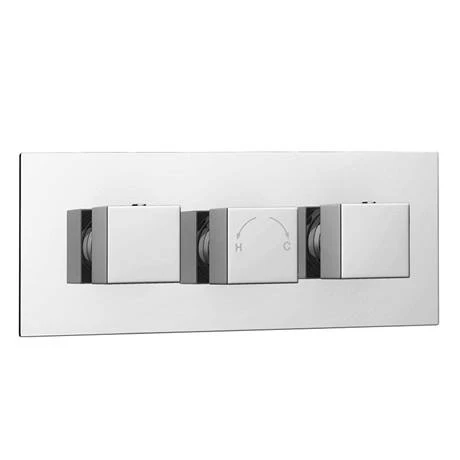

Triple Shower Valve with Diverter Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar

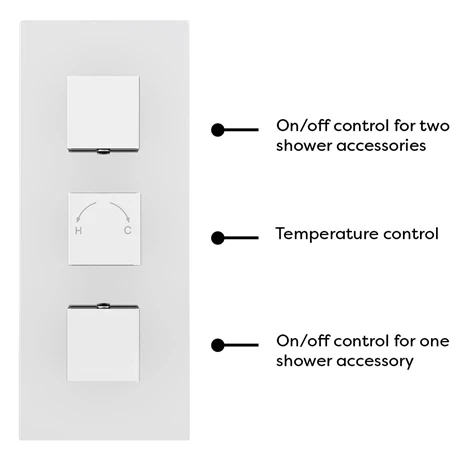

• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

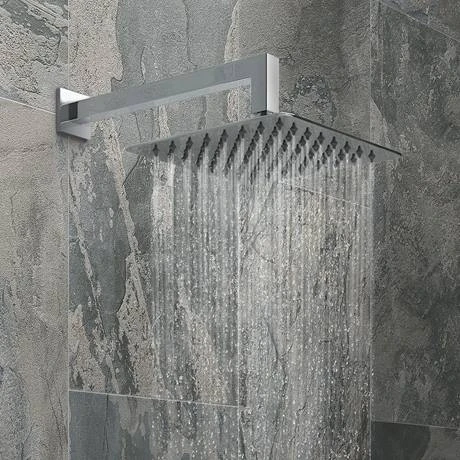

Shower Head and Arm Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 393mm
• Wall mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain

Slimline Freeflow Bath Filler Details

• Finish: Chrome
• Product Type: Freeflow Bath Filler and Overflow
• Standards: Manufactured in accordance with EN200
• Suitable for baths up to 18mm thick
• Click Clack Waste
• Projection of overflow piece is 24mm
• Connects to hot and cold water supply, flow and temperature control by shower valve.

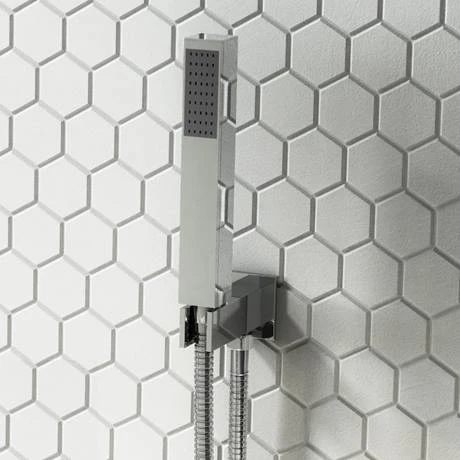

Square Outlet Elbow with Parking Bracket, Flex + Handset Details

• Depth: 63mm
• Height: 228mm
• Width: 40mm
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Square handset holder

*Please note: The overflow bath filler must be fitted on a flat edge.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

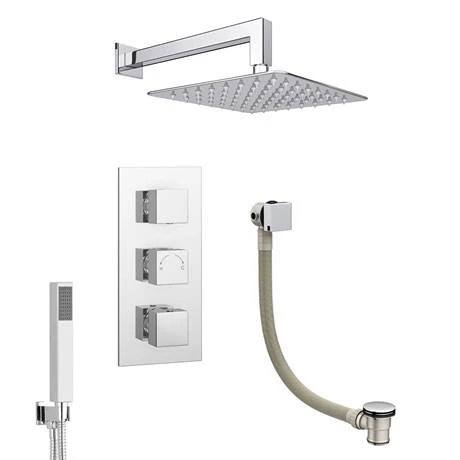

Comprises

(1) Milan Triple Square Concealed Thermostatic Shower Valve with Diverter
(1) Milan 200 x 200mm Ultra Thin Square Shower Head
(1) 90 Degree Bend Wall Mounted Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
