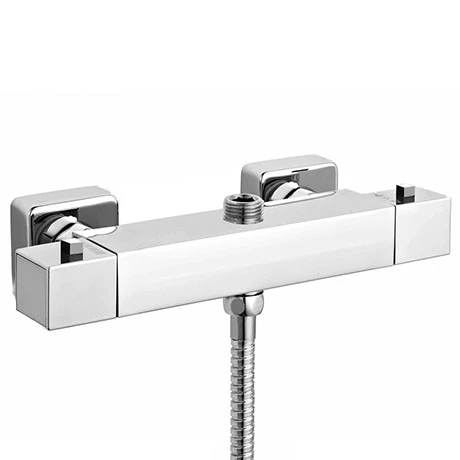

Milan Square 2 Outlets Thermostatic Bar Shower Valve

If you’re looking for luxe and contemporary shower fittings, consider the Milan Square Thermostatic Bar Shower Valve. This valve has two outlets, so can be combined with a showerhead and handset. There are dual controls for temperature and flow and the unit is thermostatic so it won’t freeze you even if someone’s running a tap elsewhere. For added comfort and safety, the anti scald feature will keep the spray at a maximum of 38°C unless adjusted with the push button. Decorative covers on the pipework will conceal tile edges for a neat appearance.

Product Details

• Width: 262mm
• Depth: 71mm
• Height: 35mm
• Style: Modern
• Range: Bar Showers
• Handles: Square
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• 2 Outlet (Top / Bottom)
• Thermostatically controlled
• Built-in anti-scald device

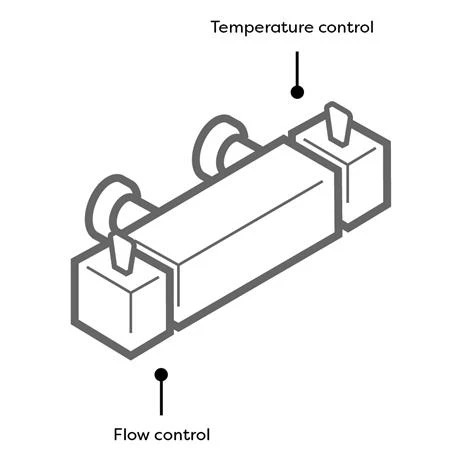

• Separate controls for temperature and flow
• Incorporating diverter to control flow between overhead to hand shower
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlets: 15 mm (1/2″ BSP)
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 6 L/M
• 1 bar – 9 L/M
• 2 bar – 12.9 L/M
• 3 bar – 16 L/M
• 4 bar – 18.4 L/M
• 5 bar – 20.6 L/M

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
