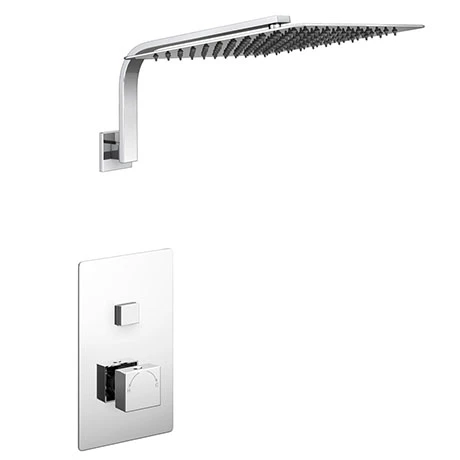

Milan Square Push-Button Concealed Shower Valve with 300x300mm Shower Head + Curved Arm

The wall mounted modern Milan push-button operated shower valve with stainless steel ultra thin shower and curved shower arm features a stunning minimalist design. Offers thermostatic showering via two easy-to-operate controls, the square handle controls temperature whilst the on/off push-button operates a single shower accessory.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• On/Off by pressing a button
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Bottom Knob controls temperature
• Instant start/stop activation.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

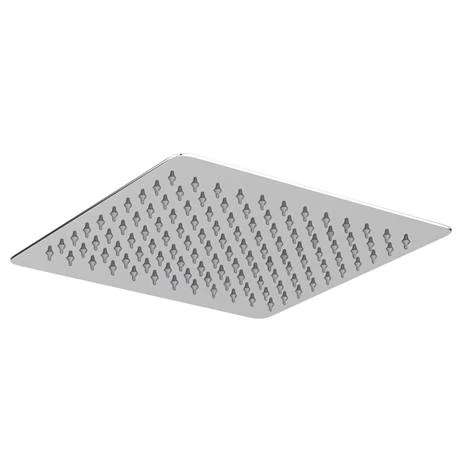

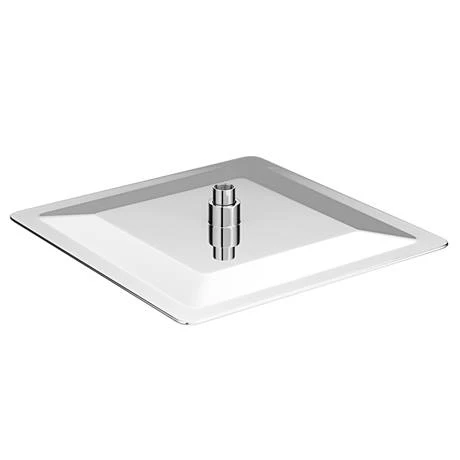

Shower Head Details

• Dimensions: 300 x 300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Pressure Requirement: 0.5 bar minimum
• Inlet Connections: G1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain

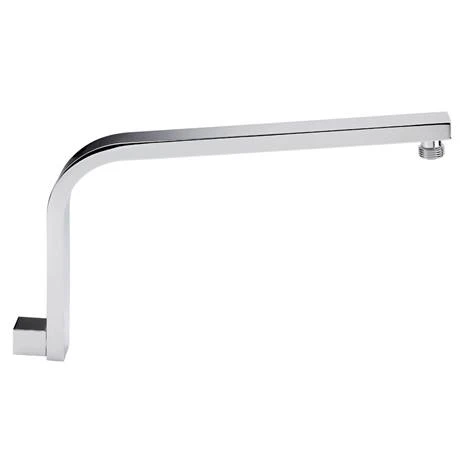

Shower Arm Details

• Arm length: 347mm
• Height: 228mm
• Width: 62mm
• Colour/Finish: Polished Chrome
• Material: Brass
• Style: Modern
• Shape: Square
• Wall Mounted, Curved Design
• Shower Arm Only
• Connection: G1/2″ BSP

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Milan Twin Modern Square Push-Button Concealed Shower Valve
(1) Milan Ultra Thin Stainless Steel Square Shower Head with Swivel Joint (300 x 300mm)
(1) Milan Curved Wall Mounted Shower Arm – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
