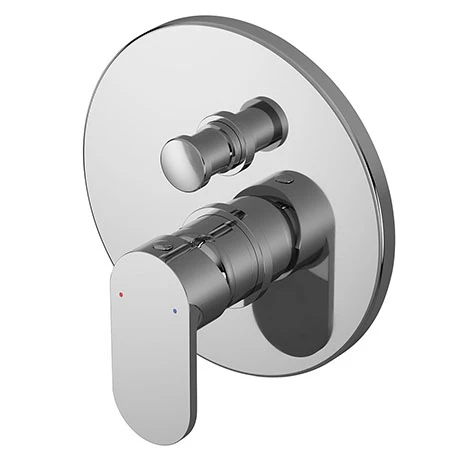

Nuie Binsey Manual Concealed Shower Valve with Diverter – BINMV12

For a sleek and contemporary look, the Binsey manual concealed shower valve with diverter is a great option. It features a round faceplate and matching rounded lever handle and comes beautifully finished in chrome. This shower valve operates a bath filler with shower or a showering area with two outlets.

To use the secondary shower outlet pull the diverter knob out – this action will divert the flow of water. To return the water flow to the primary shower outlet position simply push the diverter knob back to its original position.

Product Details

• Brand: Nuie
• Product Code: BINMV12
• Height: 170mm
• Width: 170mm
• Depth: 110mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: Single Lever Cartridge
• Pipe Size: 15 mm (1/2″ BSP)
• Concealed valve
• Water Outlet: 2
• Operating Pressure: 0.5 bar

All measurements are approximate

Flow Rates

0.1 Bar – 3.7 l/m
0.5 Bar – 8.4 l/m
1 Bar – 11.9 l/m
2 Bar – 16.9 l/m
3 Bar – 20.8 l/m
