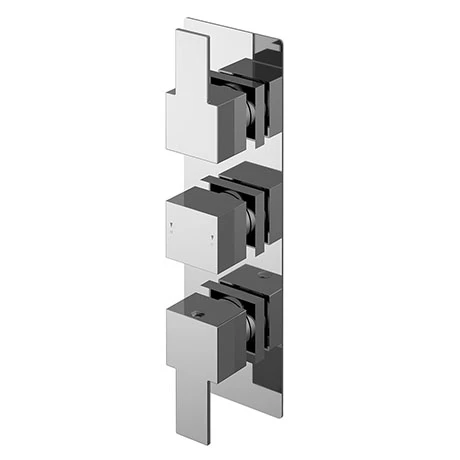

Nuie Sanford Triple Concealed Thermostatic Shower Valve with Diverter – SANTR03

With sleek lines and modern angular design, the Sanford Triple Concealed Thermostatic Shower Valve with Diverter is the perfect upgrade for all contemporary bathrooms. Made from high quality materials and beautifully finished in chrome.

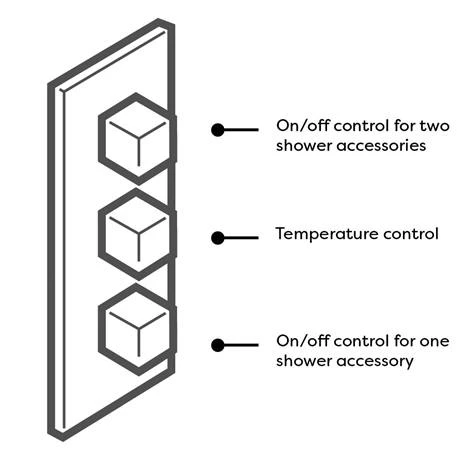

This concealed shower valve operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Brand: Nuie
• Product Code: SANTR03
• Height: 300mm
• Width: 120mm
• Depth: 135mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 22 mm (3/4″ BSP)
• Operating Pressure: 0.5 bar
• For use with 2 Outlets (separately or simultaneously) and diverts to a third option
• Built-In Diverter

All measurements are approximate

Flow Rates

0.5 Bar – 13 l/m
1 Bar – 17 l/m
2 Bar – 24 l/m
3 Bar – 27 l/m
