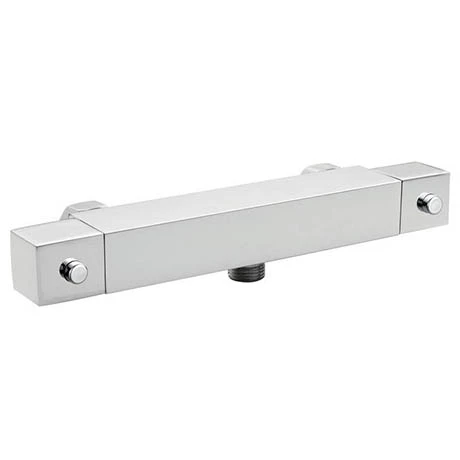

Nuie Square Thermostatic Bar Valve (Bottom Outlet) – Chrome

This Square Exposed Thermostatic Bar Shower Valve is part of our contemporary collection of bathroom products. Modern styling with chrome finish and constructed from solid brass. Thermostatic showers prevent a fluctuation in temperature whilst the shower is running – prevents the risk of scalding, or sudden cold spells!

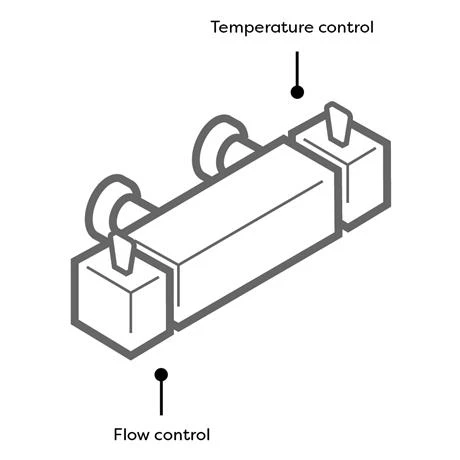

The handle on the left controls the water flow, whilst the handle on the right controls the temperature.

Product Details

• Width – 257mm
• Height – 32mm
• Code – JTY316
• Colour/Finish – Polished Chrome
• Suitable for unvented mains pressure systems
• Suitable for shower pumps
• Manufactured from high quality brass & ABS

• Wall Mounting
• Thermostatic – anti-scald protection.
• Bottom outlet – suitable for use with a slide rail kit.
• Standards – EN200 and/or WRc/NSF
• Suitable for all plumbing systems

Please note – Does not include shower hose

Guarantee – 5 Year

Flow Rates

0.1 Bar – 3 l/m
0.5 Bar – 8 l/m
1.0 Bar – 11 l/m
2.0 Bar – 16 l/m
3.0 Bar – 19.5 l/m
