Pablo Triple Thermostatic Valve with Round Shower Head and Slider Rail Kit

A quality modern complete shower package ideal for renewing the style of your bathroom affordably, comprising of a triple shower valve, round wall mounted shower head and a slider rail kit. The minimalist Pablo triple concealed thermostatic shower valve brings substantial elegance to the modern bathroom.

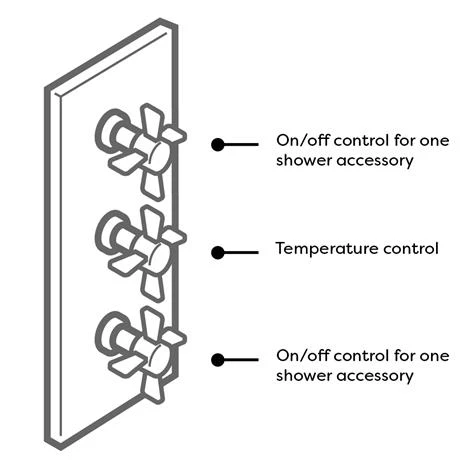

This stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously. Slider rail kit features a sliding rail, shower hose, outlet elbow and shower head. The 200mm round wall mounted fixed shower head with arm offers a chic minimalist look that feels great in any setting.

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Cross Head
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar

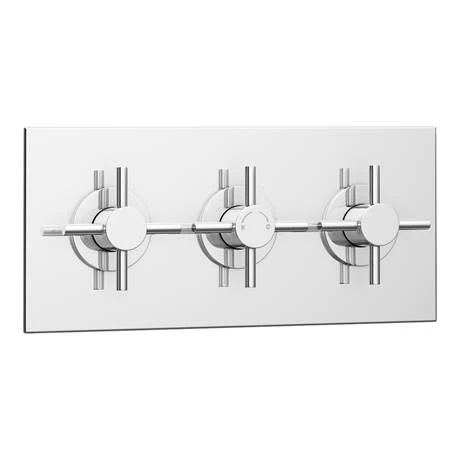

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

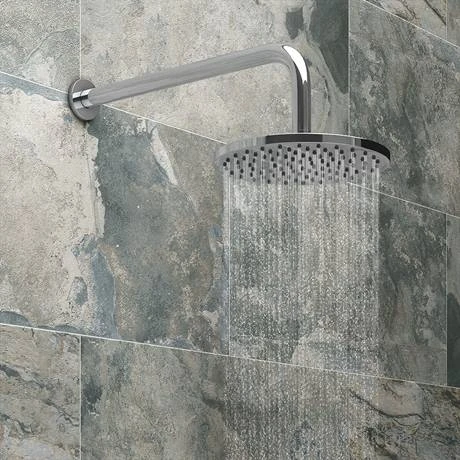

Shower Head & Arm Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.


Slider Rail Kit Details

• Slide rail Dimensions: height 70cm, projection 8.5cm, width 3.5cm
• Shower handset: height 22cm
• Shower flex: 140cm
• Highly polished finish
• Chrome plated solid brass
• Contemporary style
• LP1 – 0.5 bar pressure minimum
• Rust resistant hose
• Easy clean multi-function handset
• Please note – Certain parts are chrome plated plastic, not metal. The only parts that are not plastic are the rail and the hose.
• Supplied with round outlet elbow.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

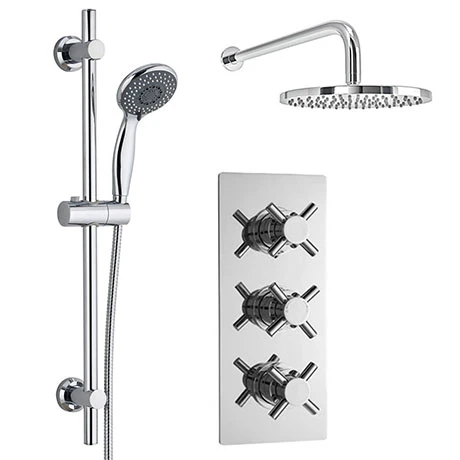

Comprises

(1) Pablo Modern Crosshead Triple Thermostatic Shower Valve
(1) 200mm Fixed Round Shower Head
(1) Wall Mounted Round Shower Arm
(1) Modern Slider Rail Shower Kit

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
