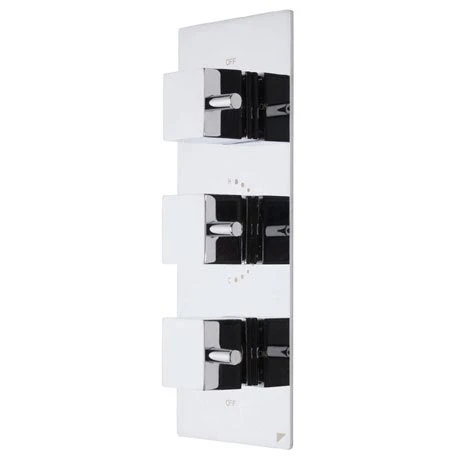

Roper Rhodes Event Square Triple Function Diverter Shower Valve – SV2109

A great value shower valve, the Event Square Triple Function Diverter Shower Valve is fully thermostatic and is designed to control two separate shower accessories such as a fixed shower head and shower handset. The two seperate flow controls can be operated separately or simultaneously.

Suitable for all plumbing systems with a minimum operating pressure of 1.0 bar, the valve features easy to use separate flow and temperature controls and an automatic shut down if the cold water pressure should suddenly fail and is limescale resistant. All Roper Rhodes shower valves are guaranteed for 10 years.

Product Details

• Chrome finish
• Contemporary design
• Dimensions: (W)120mm x (H)280mm x (D)135mm
• Suitable for all plumbing systems
• TMV2 approved
• Easy to use separate flow and temperature control
• Thermostatic concealed valve
• Limescale build up resistant
• Can be mounted horizontally or vertically
• Minimum operating pressure of 1.0 bar

10 year guarantee

Flow Rates

0.1 Bar – (Top Outlet) 6.1 l/m (Both Outlets) 5.4 l/m
0.2 Bar – (Top Outlet) 8.3 l/m (Both Outlets) 7.2 l/m
0.3 Bar – (Top Outlet) 9.9 l/m (Both Outlets) 8.7 l/m
0.4 Bar – (Top Outlet) 11.4 l/m (Both Outlets) 9.9 l/m
0.5 Bar – (Top Outlet) 12.6 l/m (Both Outlets) 11.0 l/m
1.0 Bar – (Top Outlet) 17.6 l/m (Both Outlets) 15.7 l/m
2.0 Bar – (Top Outlet) 24.1 l/m (Both Outlets) 22.5 l/m
3.0 Bar – (Top Outlet) 28.4 l/m (Both Outlets) 27.7 l/m
4.0 Bar – (Top Outlet) 29.5 l/m (Both Outlets) 32.2 l/m
