Trafalgar Traditional Shower Package with Fixed Head, Handset + Bath Spout

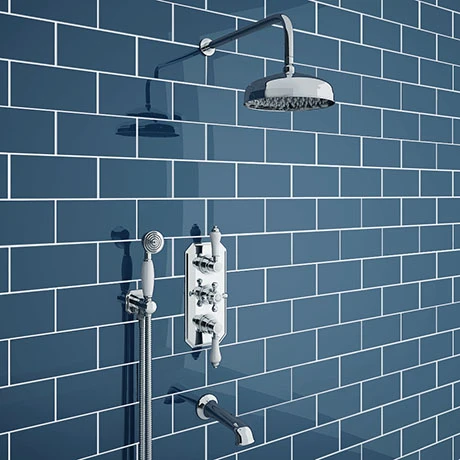

The Trafalgar Traditional Shower Package combines period looks with exceptional features for an enhanced showering experience. The water has three outlets – a fixed rainfall head, a detachable handset and a bath spout. Divert the flow and change the temperature with ease using the practical lever and crosshead handles, all with tasteful ceramic detailing. This traditional thermostatic shower lets you choose exactly how hot you want your water and avoids your shower suddenly going cold when someone flushes the loo. With a concealed shower valve such as this, all pipes are hidden behind the wall for a streamlined look.

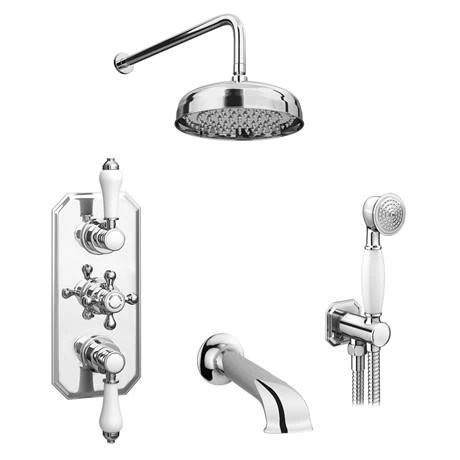

Package comes with a wall mounted bath spout, a 8″ fixed shower head with swivel joint, a traditional style outlet elbow with parking bracket, flex and handset.

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Built-in Diverter
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.

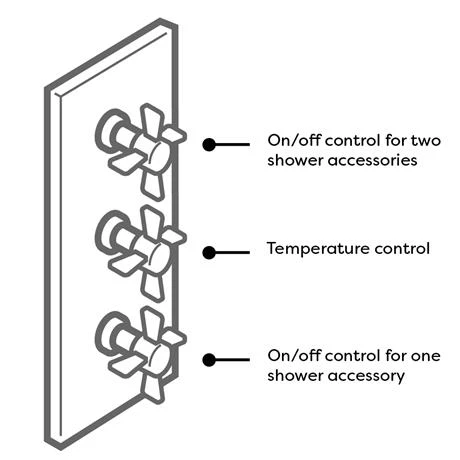

• Operates two shower accessories separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head with Arm Details

• Diameter: 210mm
• Height: 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Rainfall shower
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Installation of the arm requires rear access behind the wall.

Outlet Elbow with Parking Bracket, Flex & Handset Details

• Height: 216mm
• Width: 50mm
• Depth: 98mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• 1/2″ BSP connections
• Outlet elbow covers unsightly fittings
• Suitable for use with concealed shower valves
• Chrome 1.5m flexible hose
• Wall mounted
• Suitable for water pressure systems of 0.2 bar and above

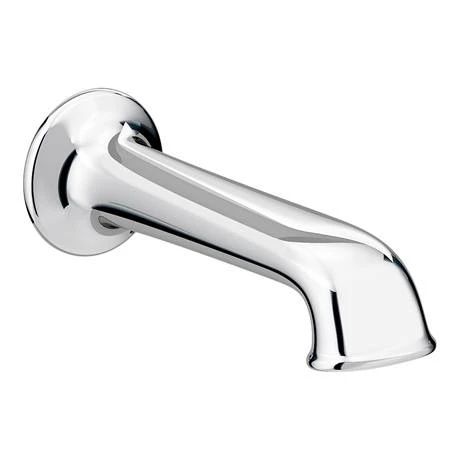

Bath Spout Details

• Width: 65mm
• Height: 65mm
• Depth: 176mm
• Style: Traditional
• Wall Mounted
• Product Type: Built-in Spout
• Colour/Finish: Chrome Plated
• Material: Brass
• Minimum Pressure Required: 0.5 bar

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve with Diverter
(1) Traditional 8″ Apron Rose Shower Head with Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset
(1) Wall Mounted Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
