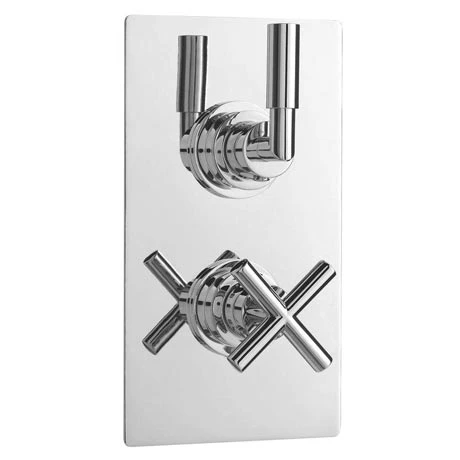

Ultra Helix Concealed Crosshead Thermostatic Twin Shower Valve – HELV51

Features minimalist easy to operate controls, the top control turns the water on and off and the bottom control adjusts the temperature.

Operates one shower accessory, choose a fixed head or slide rail kit (sold separately).

Product Details

• Height – 215mm
• Width – 120mm
• Depth – 131mm
• Product Code – HELV51
• Brand – Ultra
• Colour/Finish – Polished Chrome
• Material – solid brass.
• Can be fitted vertically or horizontally.
• Water Pressure – LP1 – 0.1 bar minimum
• Pipework is concealed for a minimalist look
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain and TMV2/TMV3 approved – ensuring it has been tested to the highest standards.

WRAS approved Product

Guarantee – 10 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
