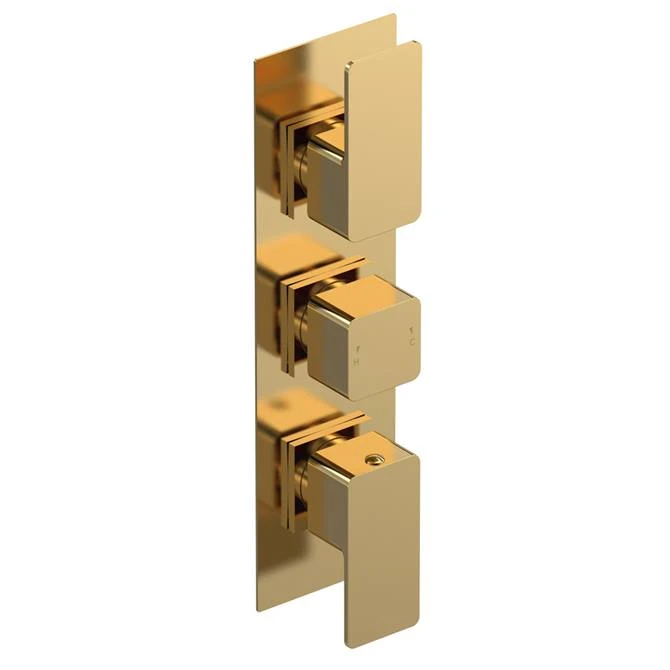

Venice Cubo Triple Thermostatic Shower Valve with Diverter – Brushed Brass

Bring sleek designer style to your bathroom with the Brushed Brass Venice Cubo Concealed Twin Shower Valve with Diverter, features a striking square design with a contemporary brushed brass finish. This concealed shower valve operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height: 300mm
• Width: 120mm
• Depth: 135mm
• Finish: Brushed Brass (PVD)
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 22 mm (3/4″ BSP)
• Operating Pressure: 0.5 bar
• For use with 2 Outlets (separately or simultaneously) and diverts to a third option
• Built-In Diverter
• Patented Valquest cartridge – Made in Britain
• Accurate flow control
• Full thermal protection to prevent scalding
• Can be fitted vertically or horizontally
• Fully reversible cartridge


All measurements are approximate

Flow Rates

0.5 Bar – 13 l/m
1 Bar – 17 l/m
2 Bar – 24 l/m
3 Bar – 27 l/m
